TP10 GEN-2

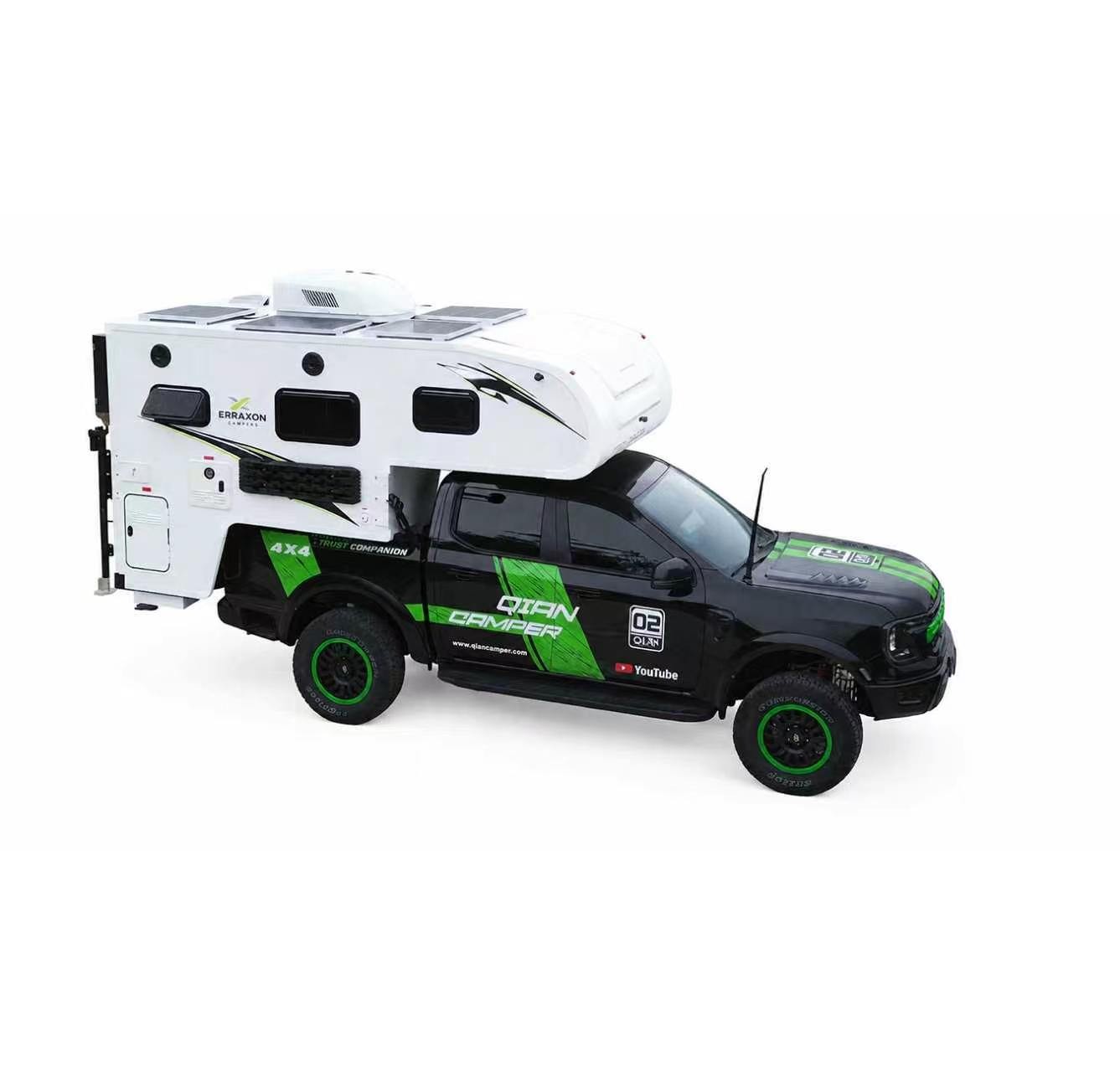

　　One vehicle, two uses – pickup instantly becomes a mobile home

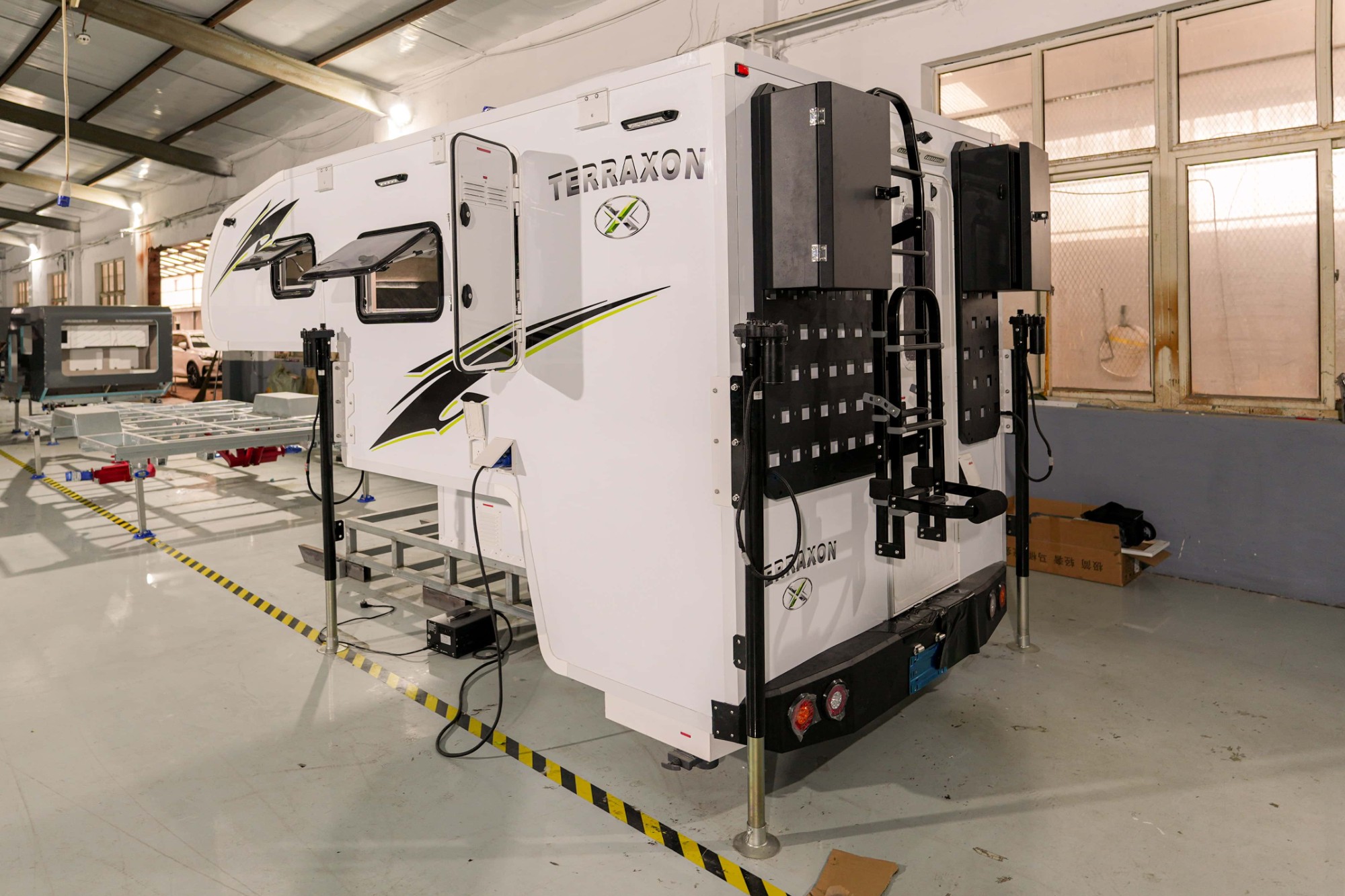

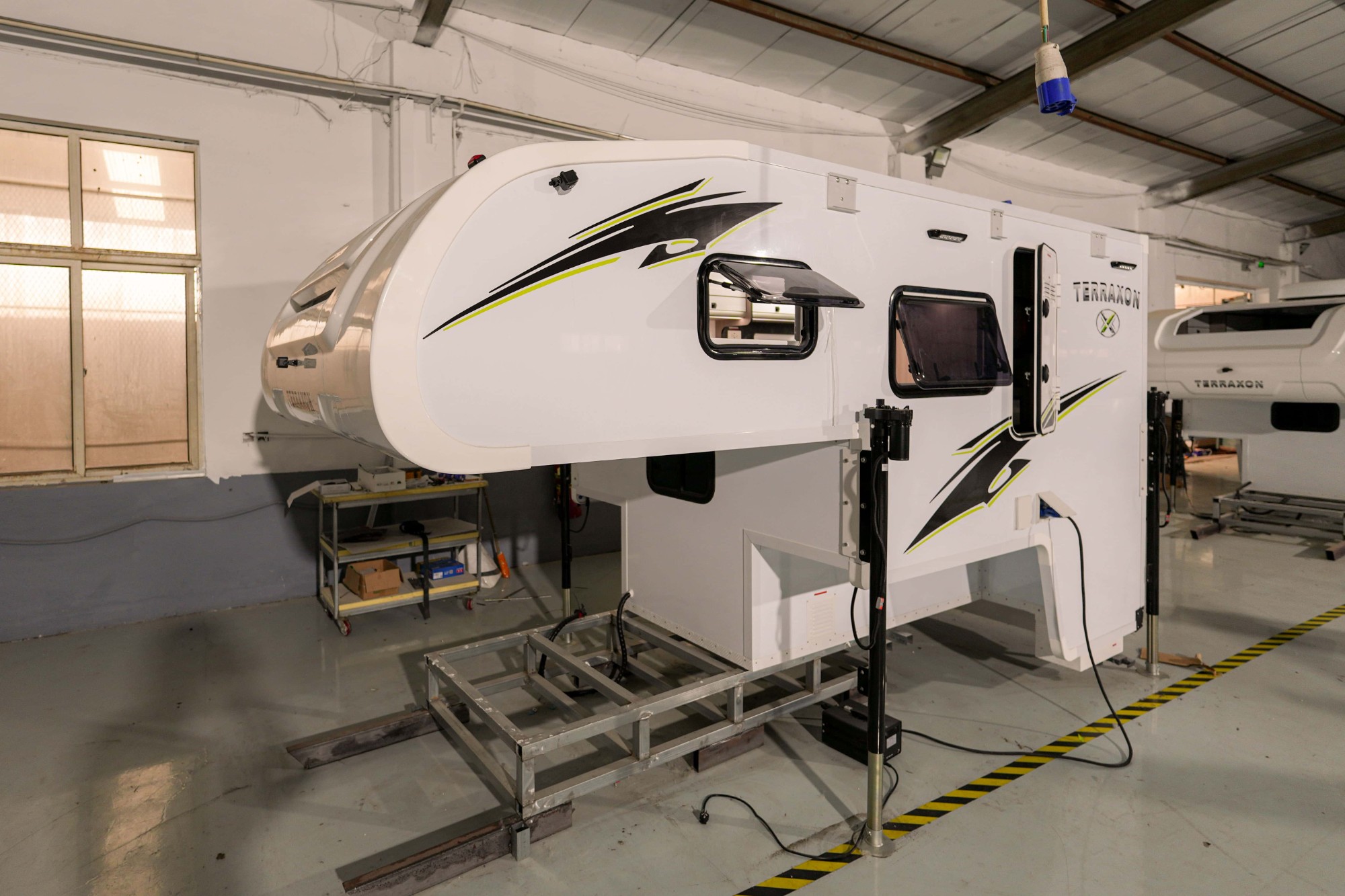

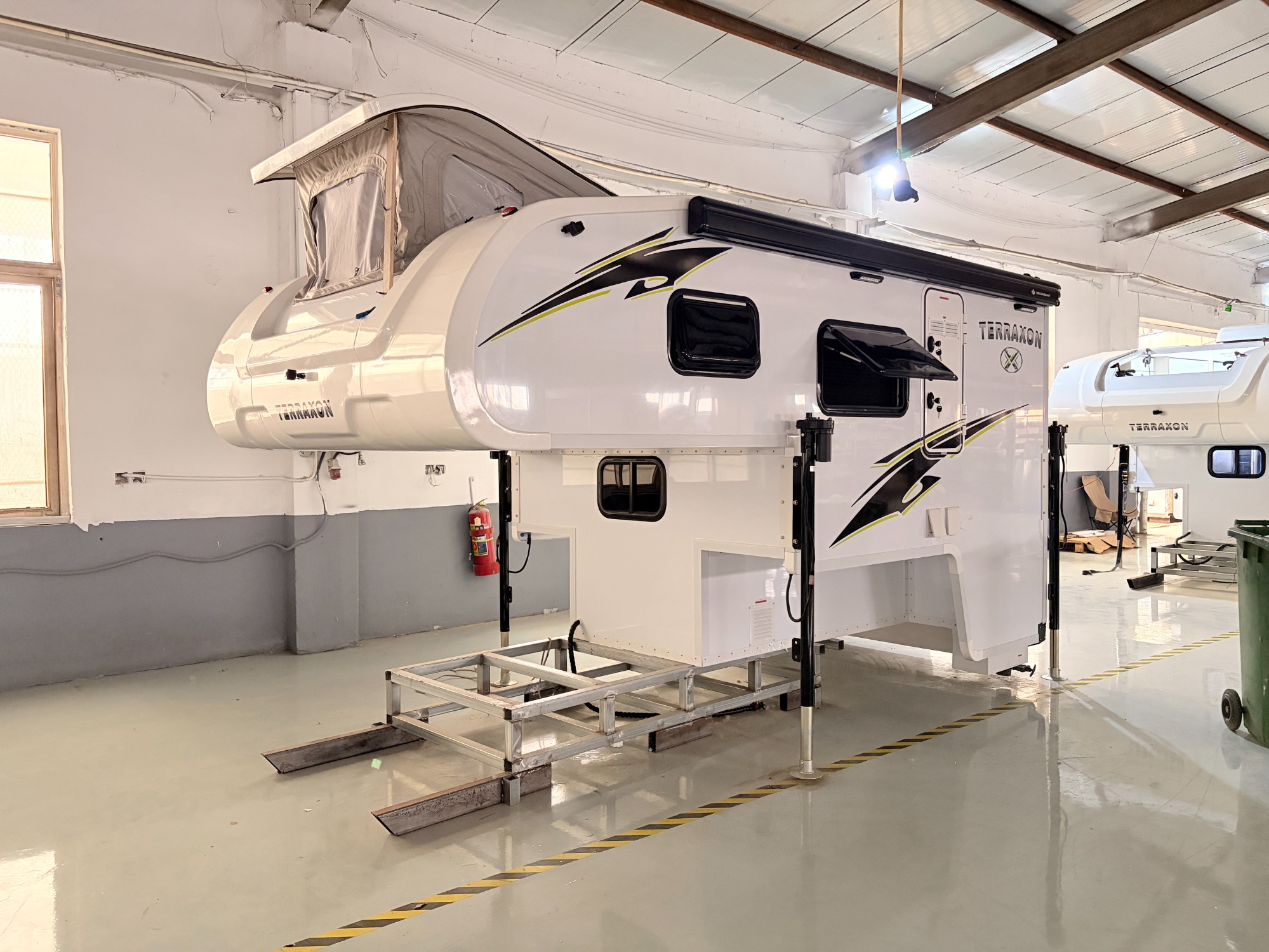

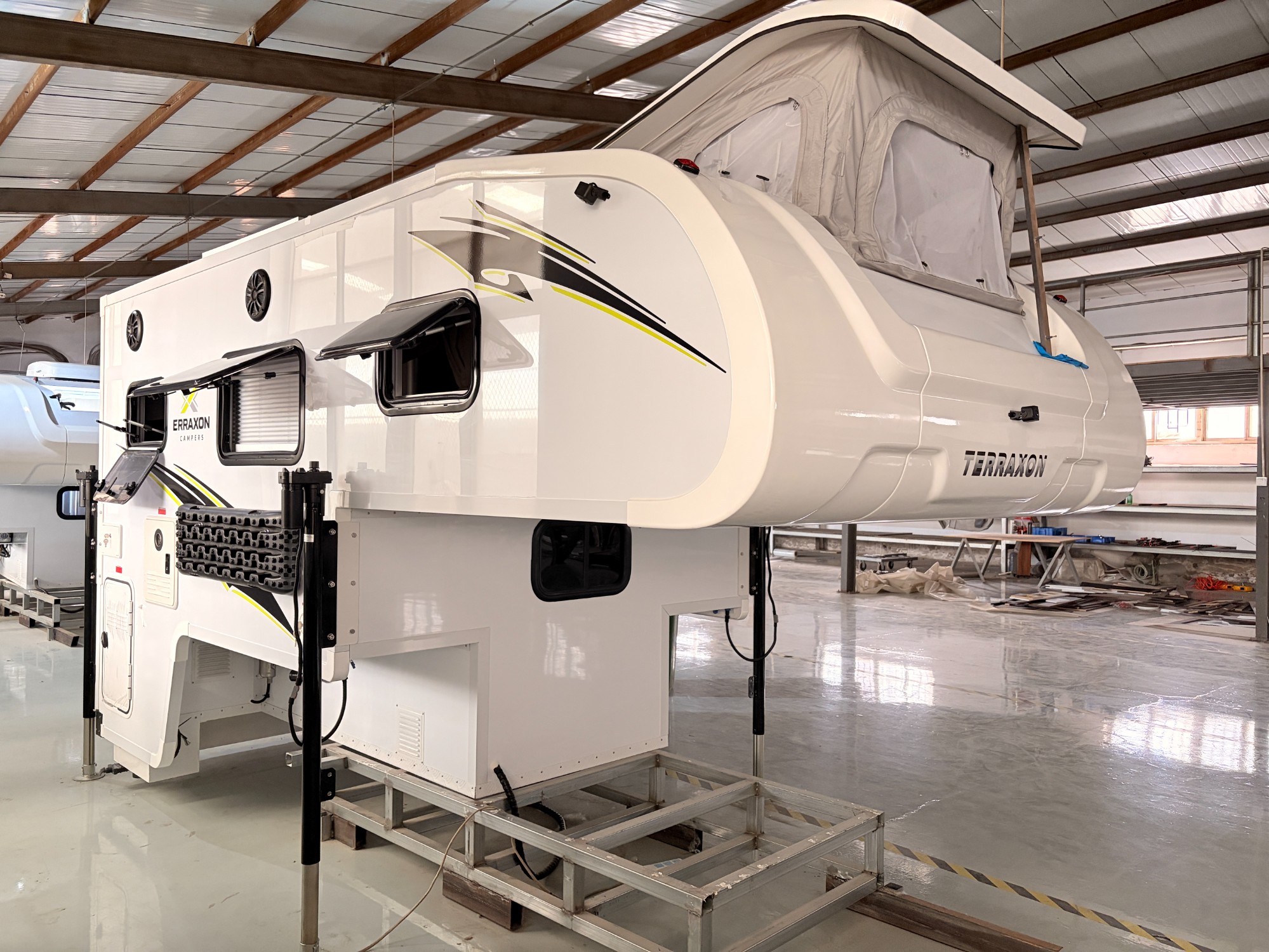

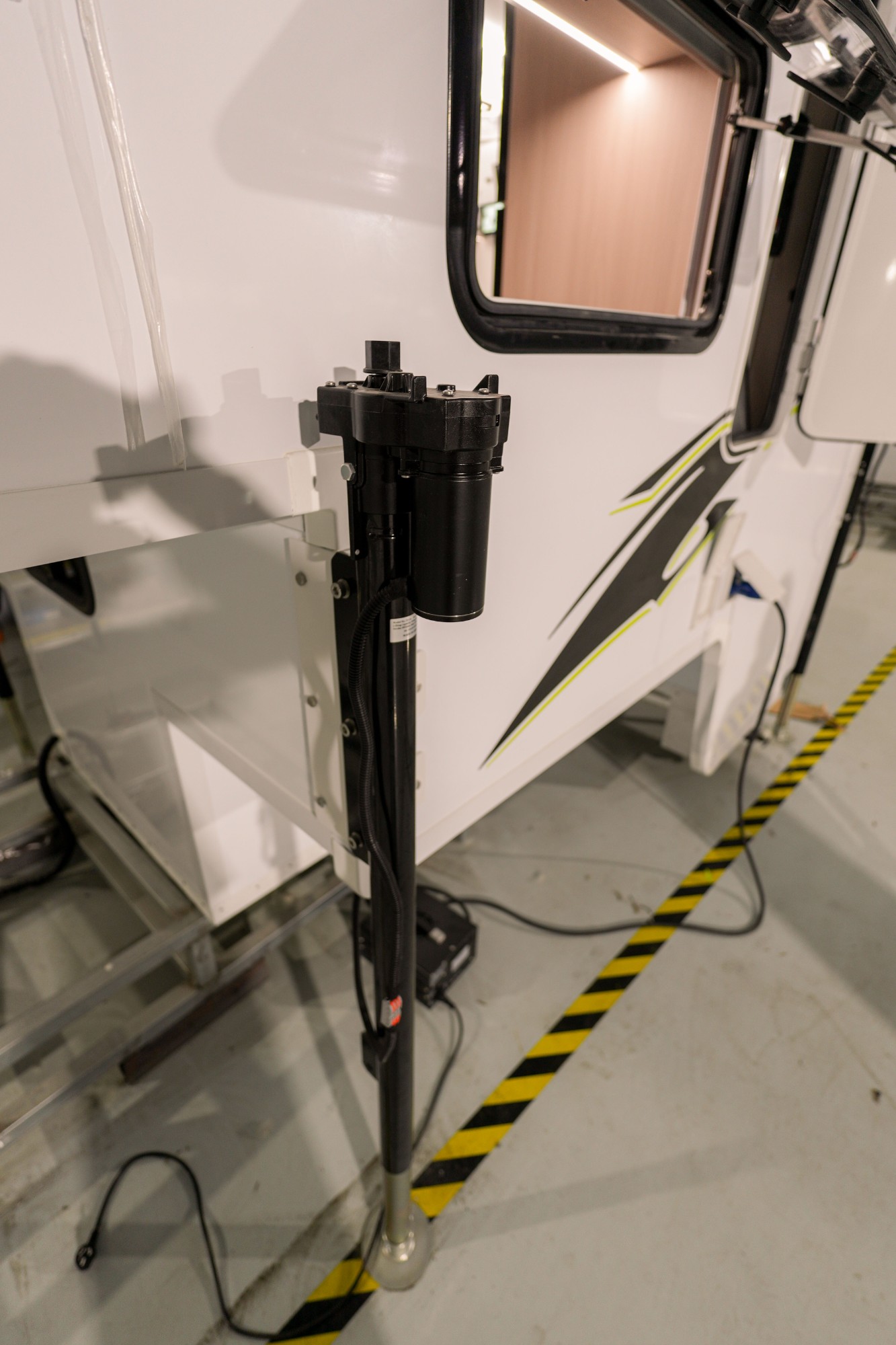

　　Perfect match for pickup: Aluminum sandwich composite panel body, dry weight only 780-900KG, within payload capacity of most pickups. Equipped with 4 mechanical camper jacks + 4 ratchet straps, one-person installation, quick load/unload from truck bed.

　　Ready to use, full water & power system:

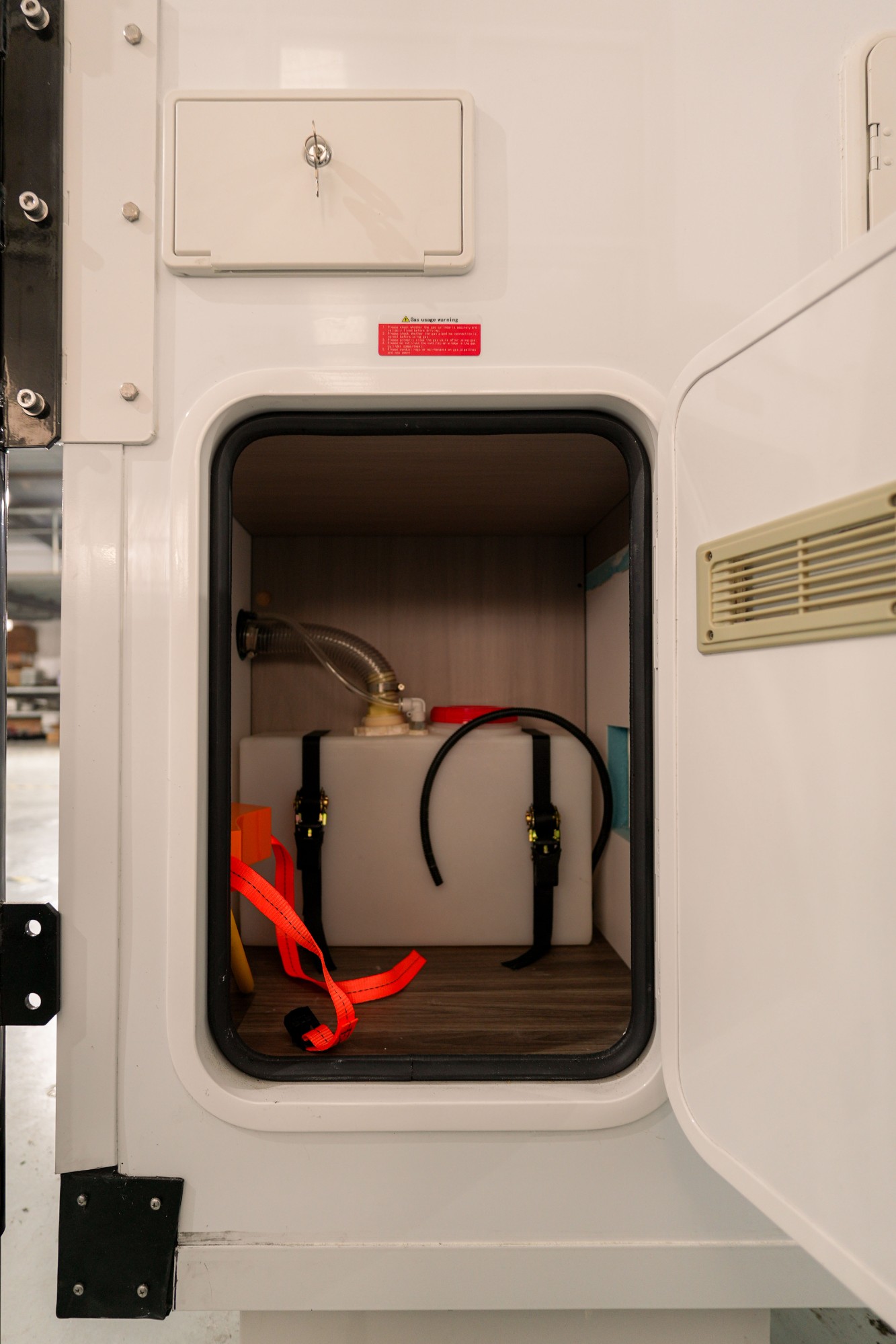

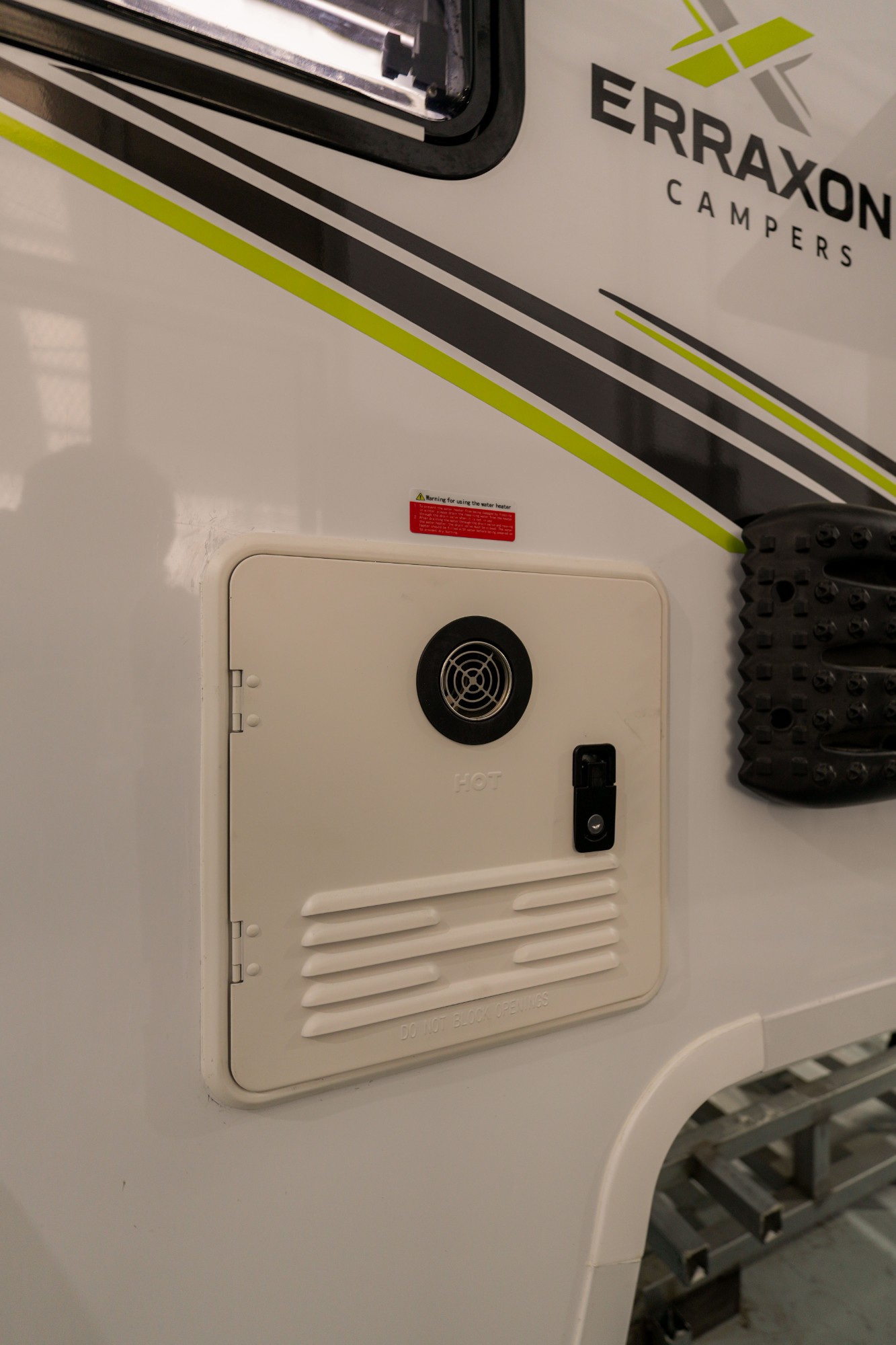

　　Water: 100L fresh water tank + 60L grey water tank + 12L gas water heater (outdoor shower with hot and cold water)

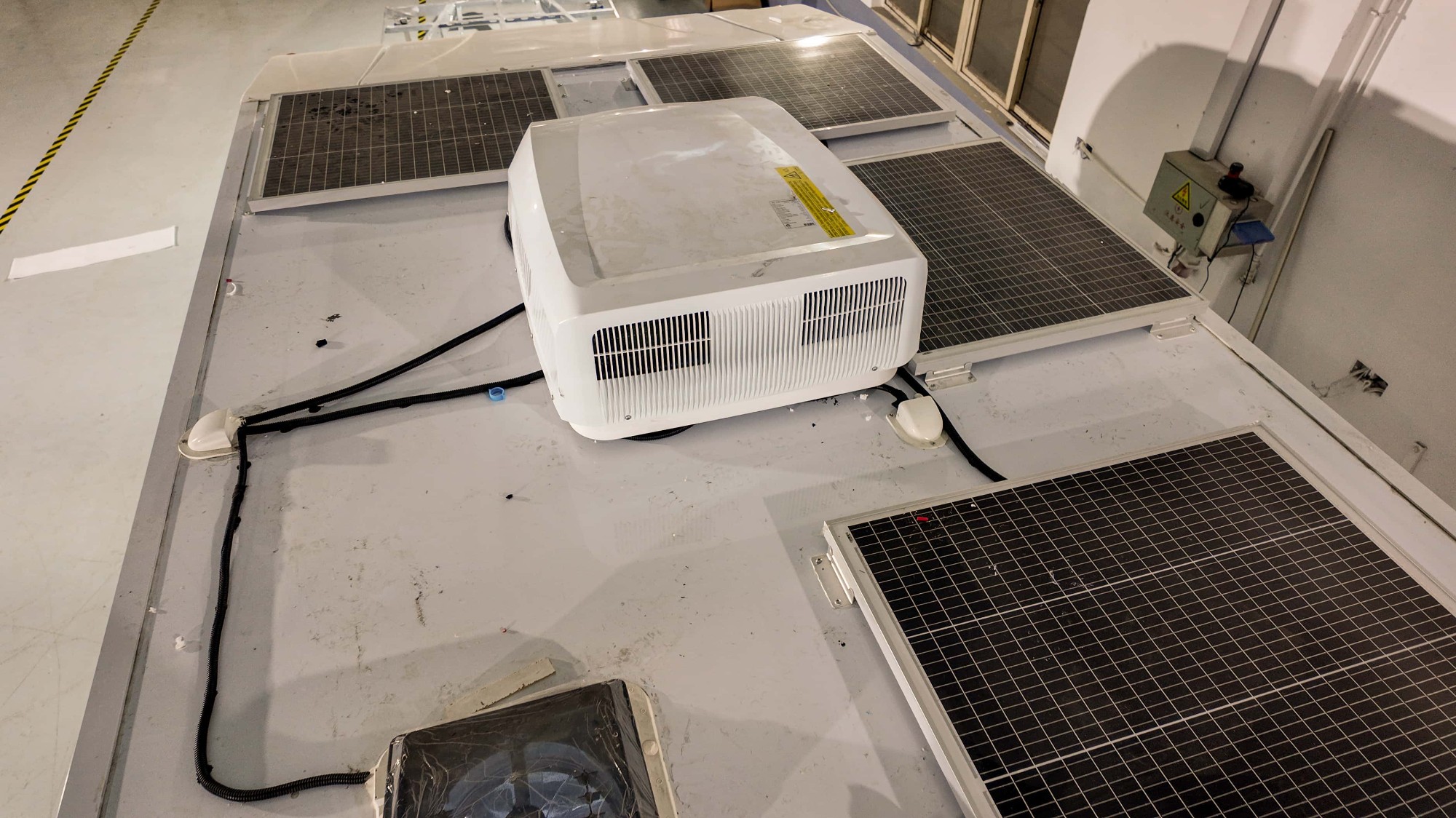

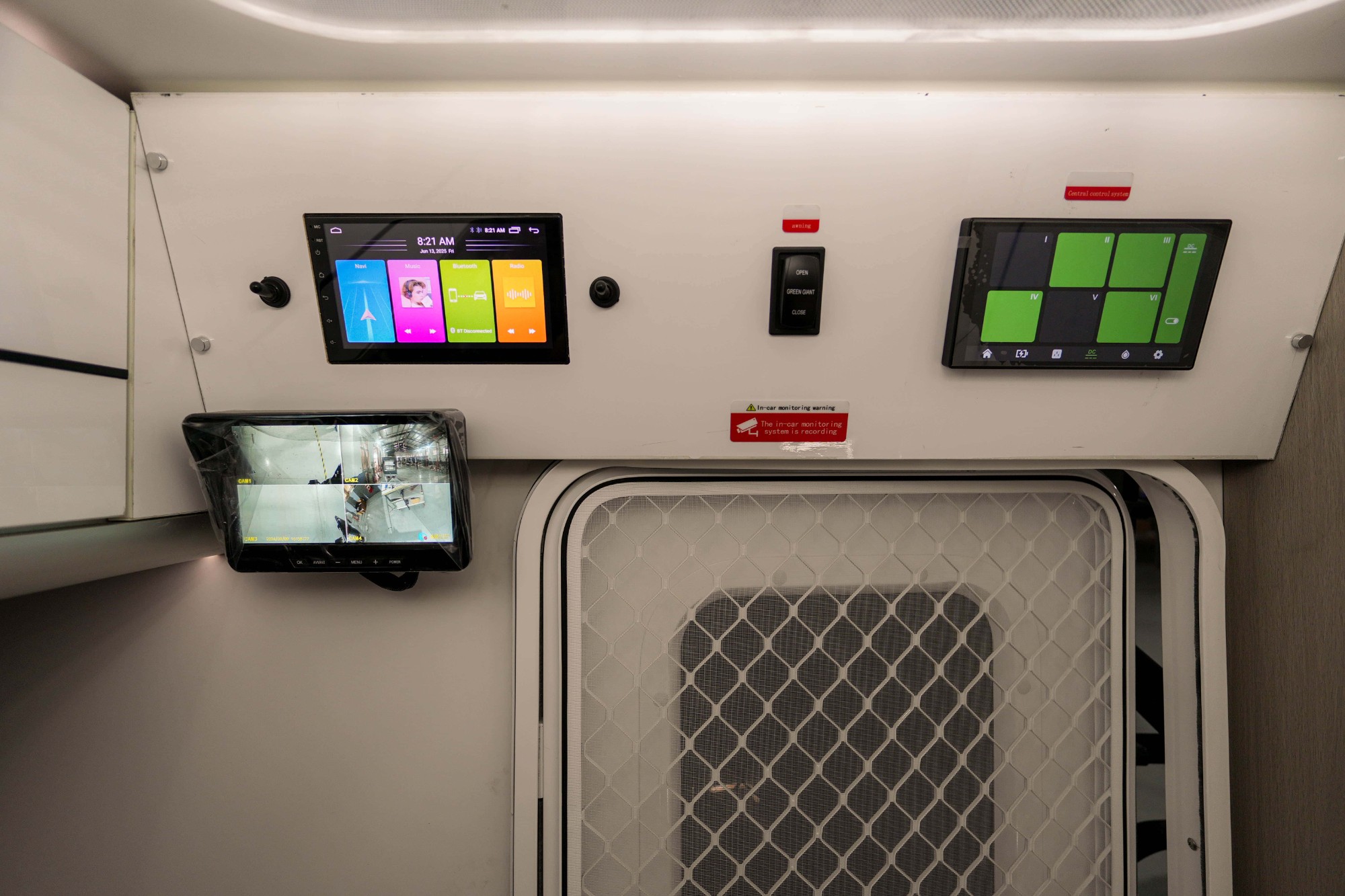

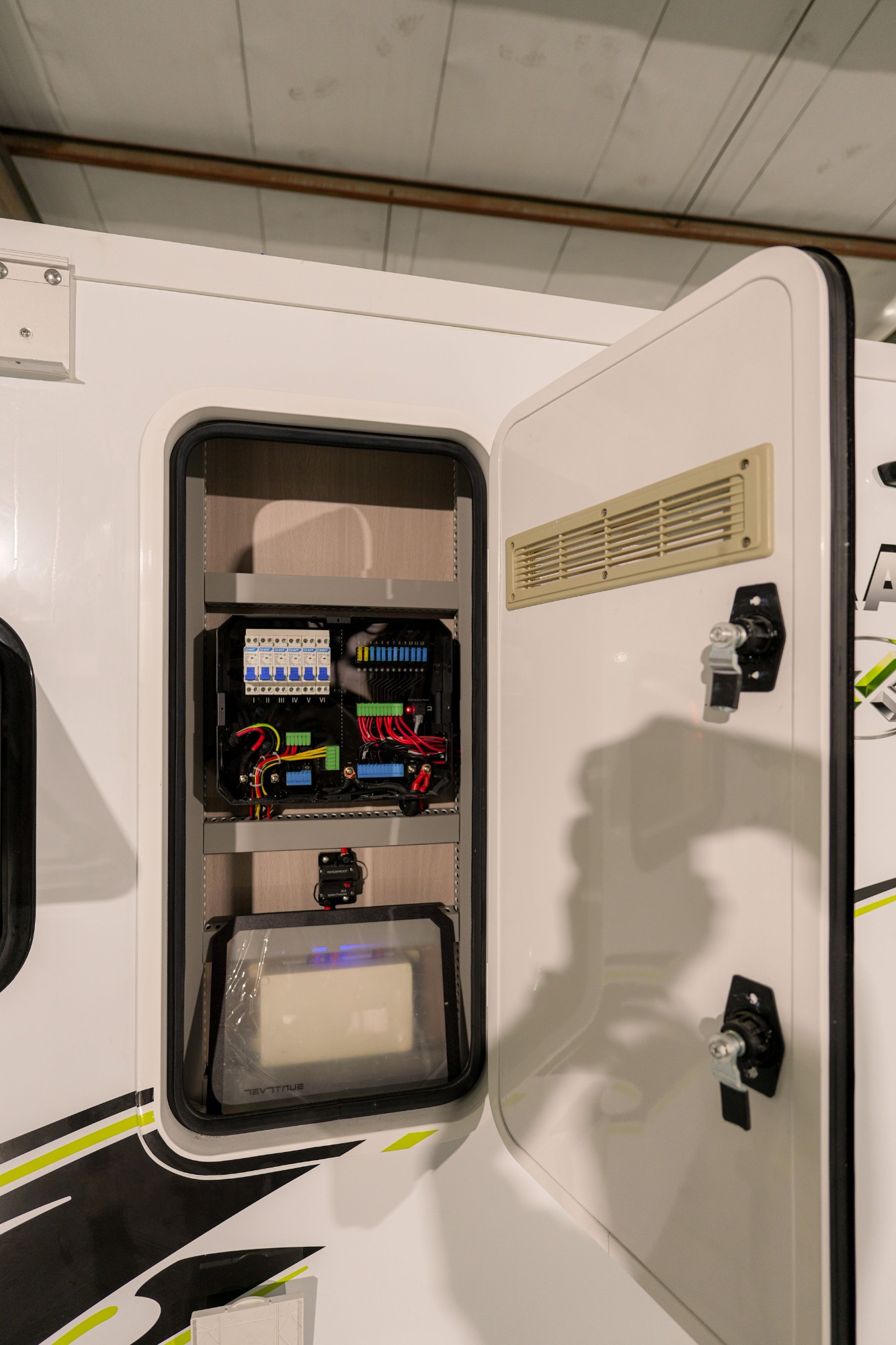

　　Power: 200W solar panel + MPPT controller + 12V control panel (standard included)

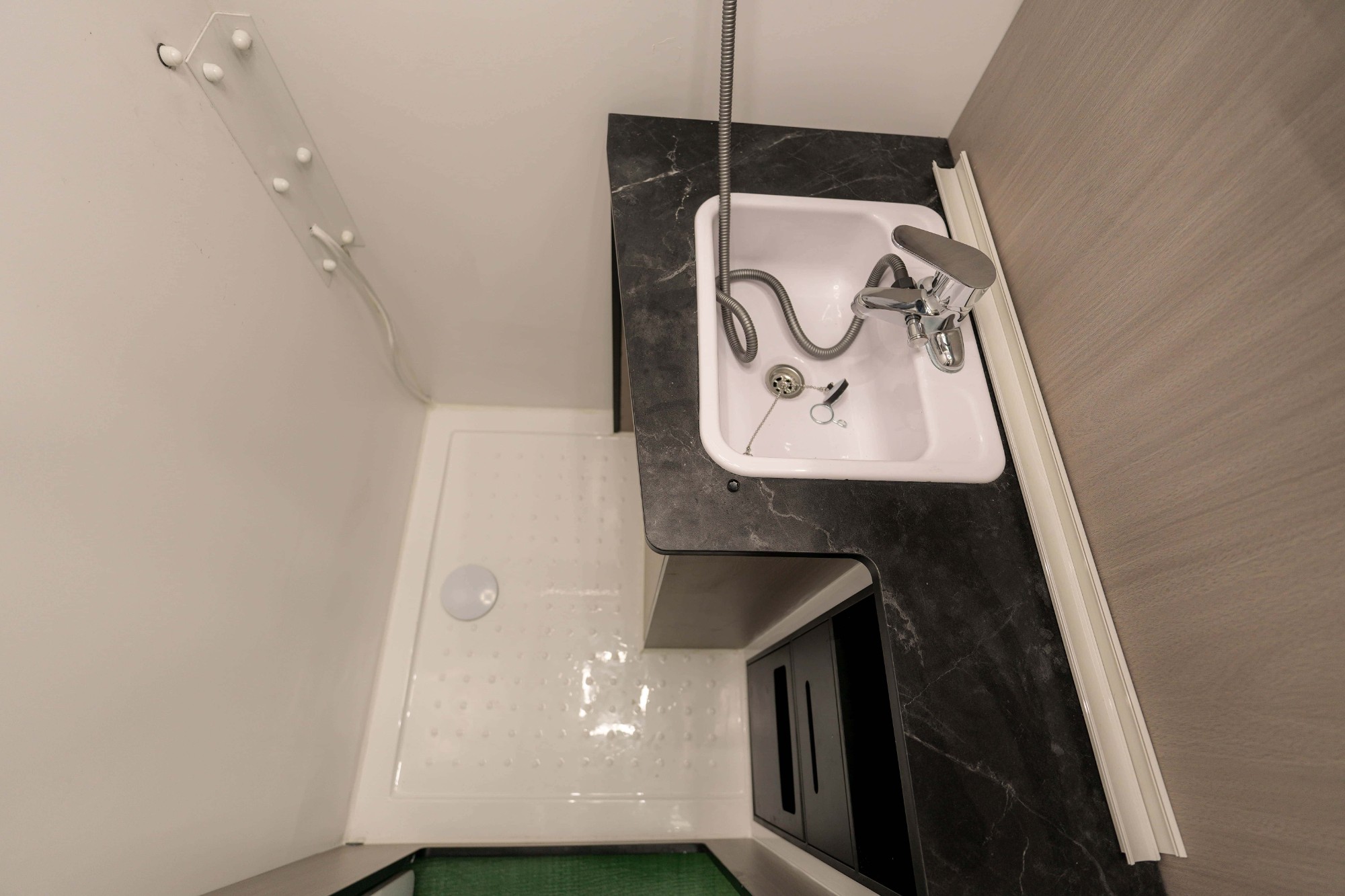

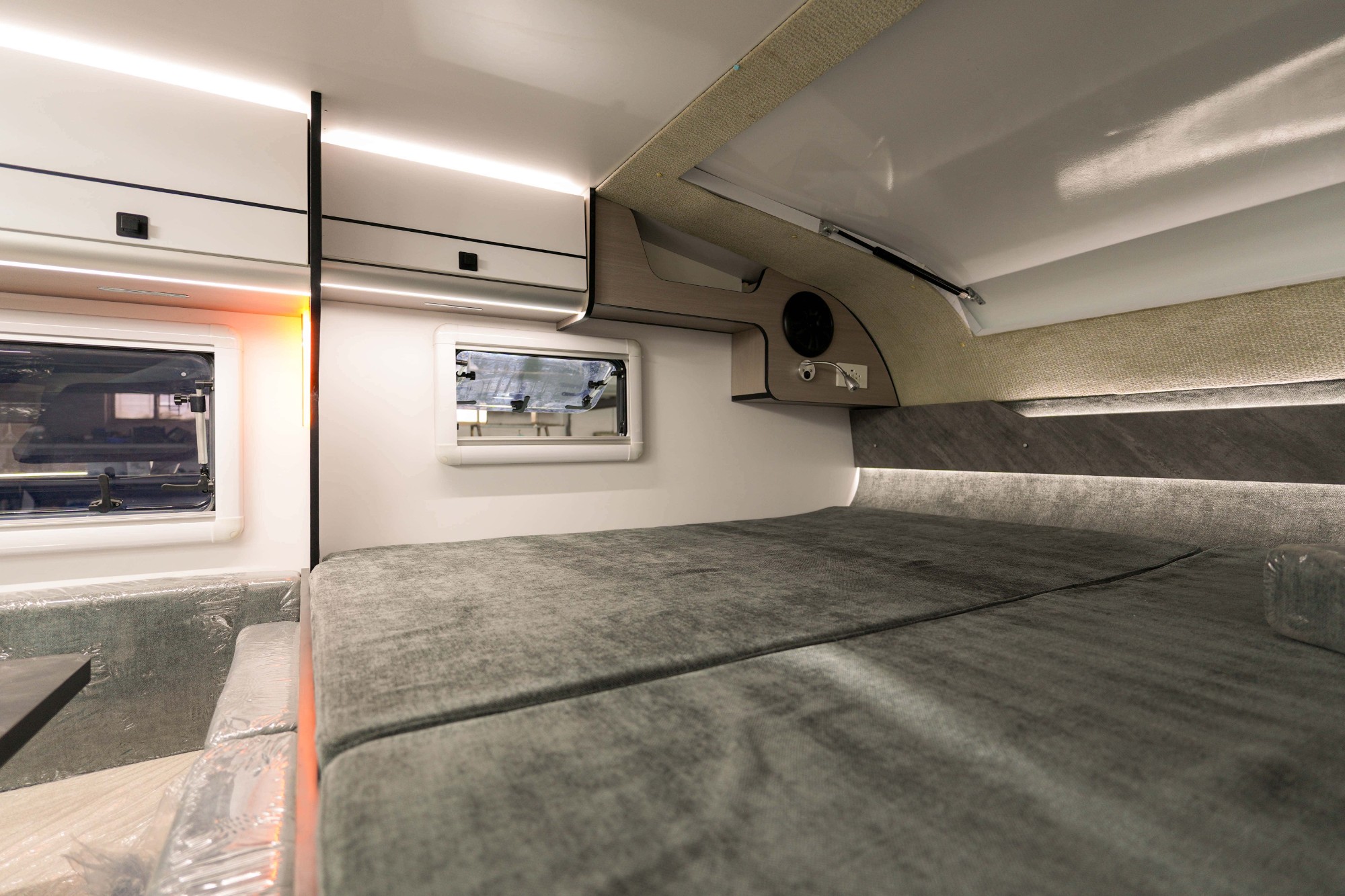

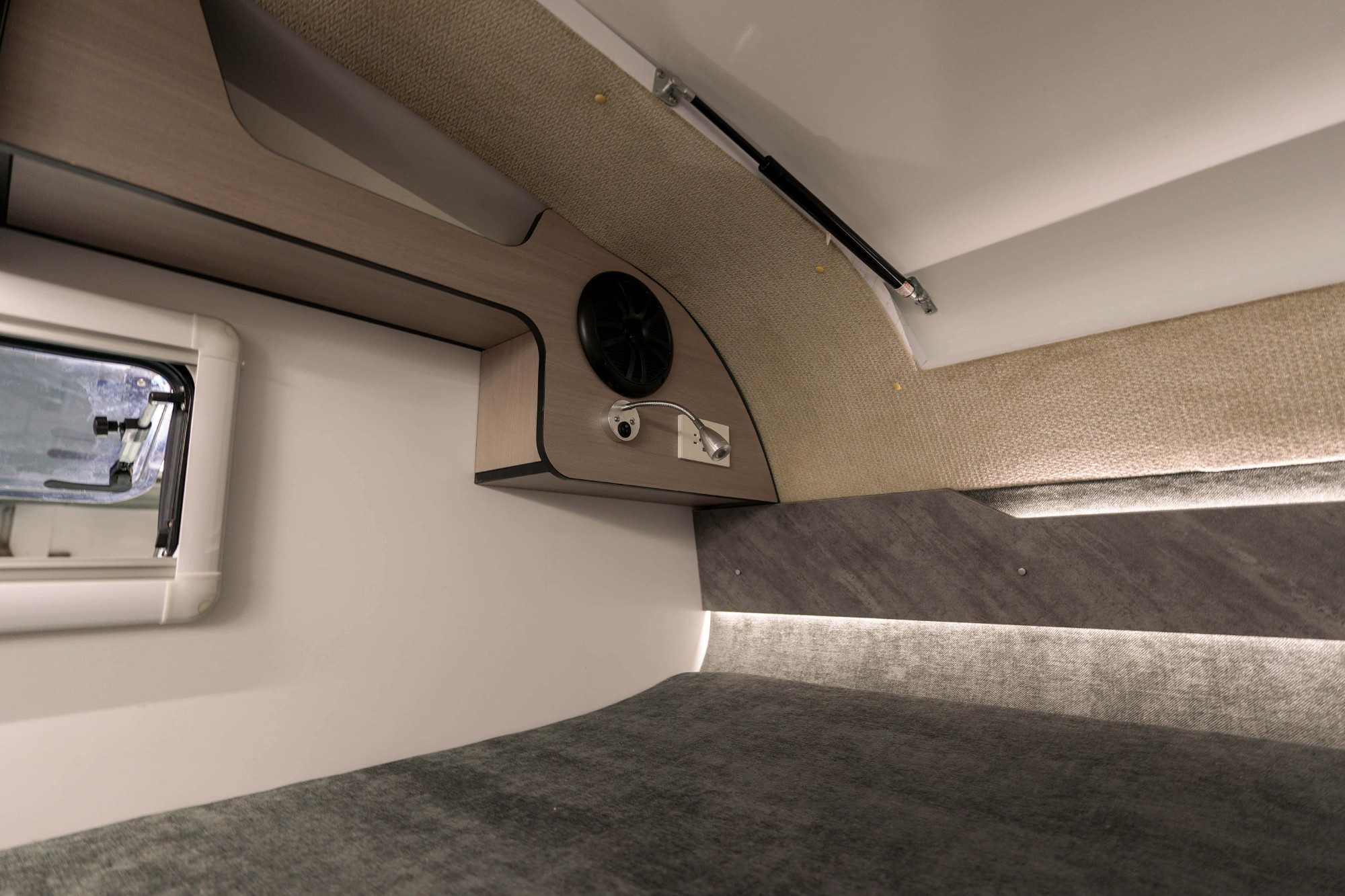

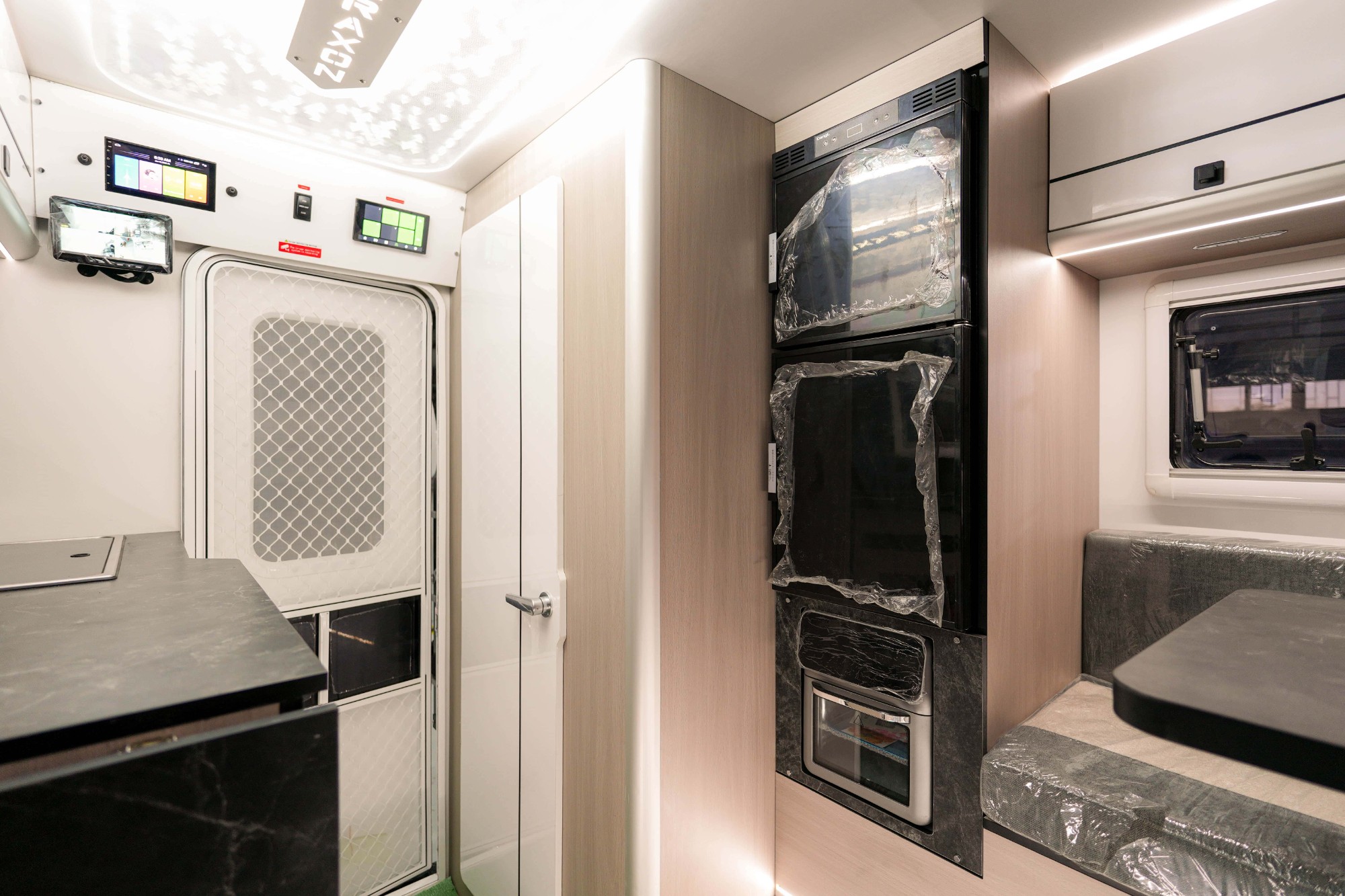

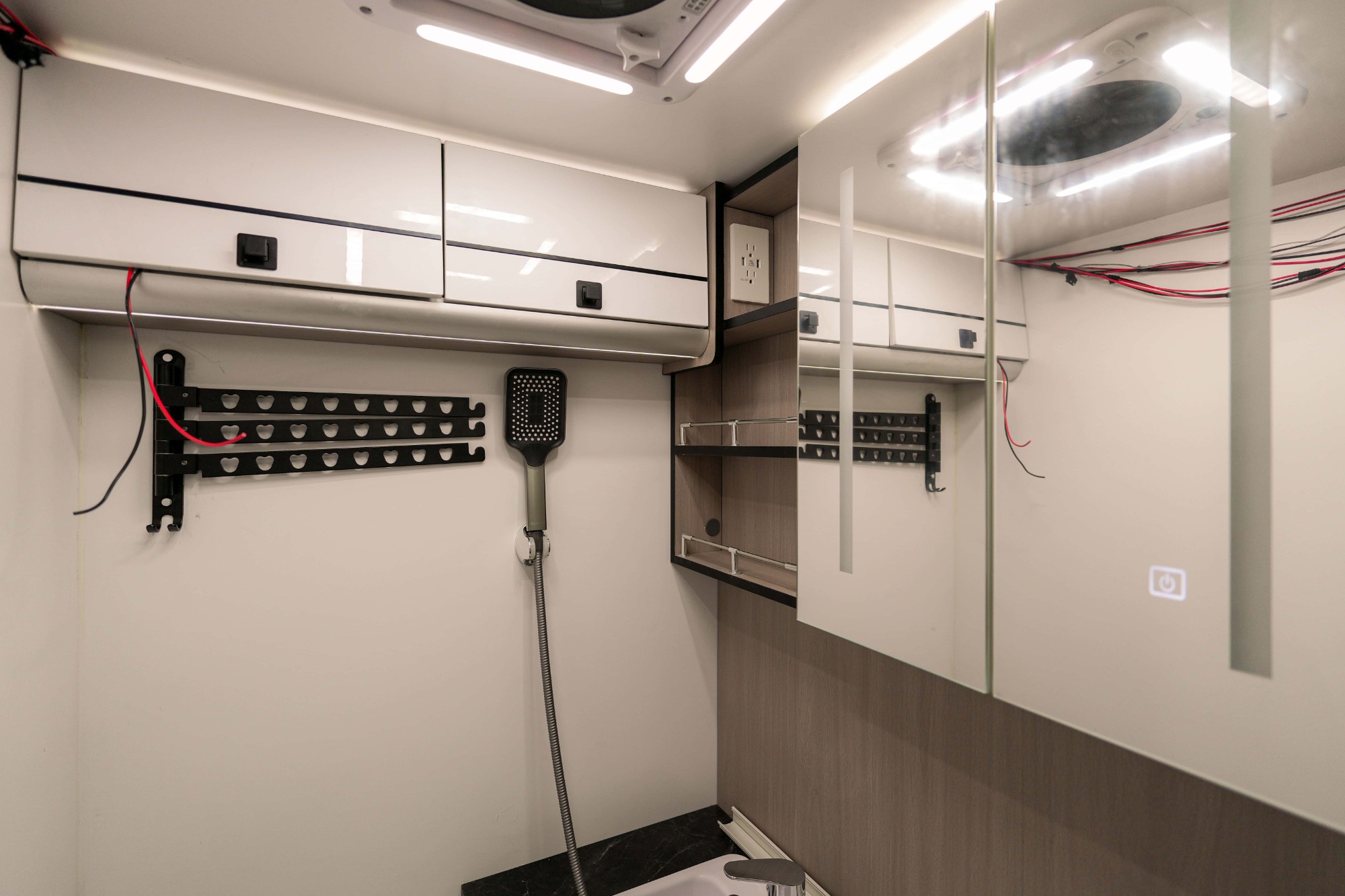

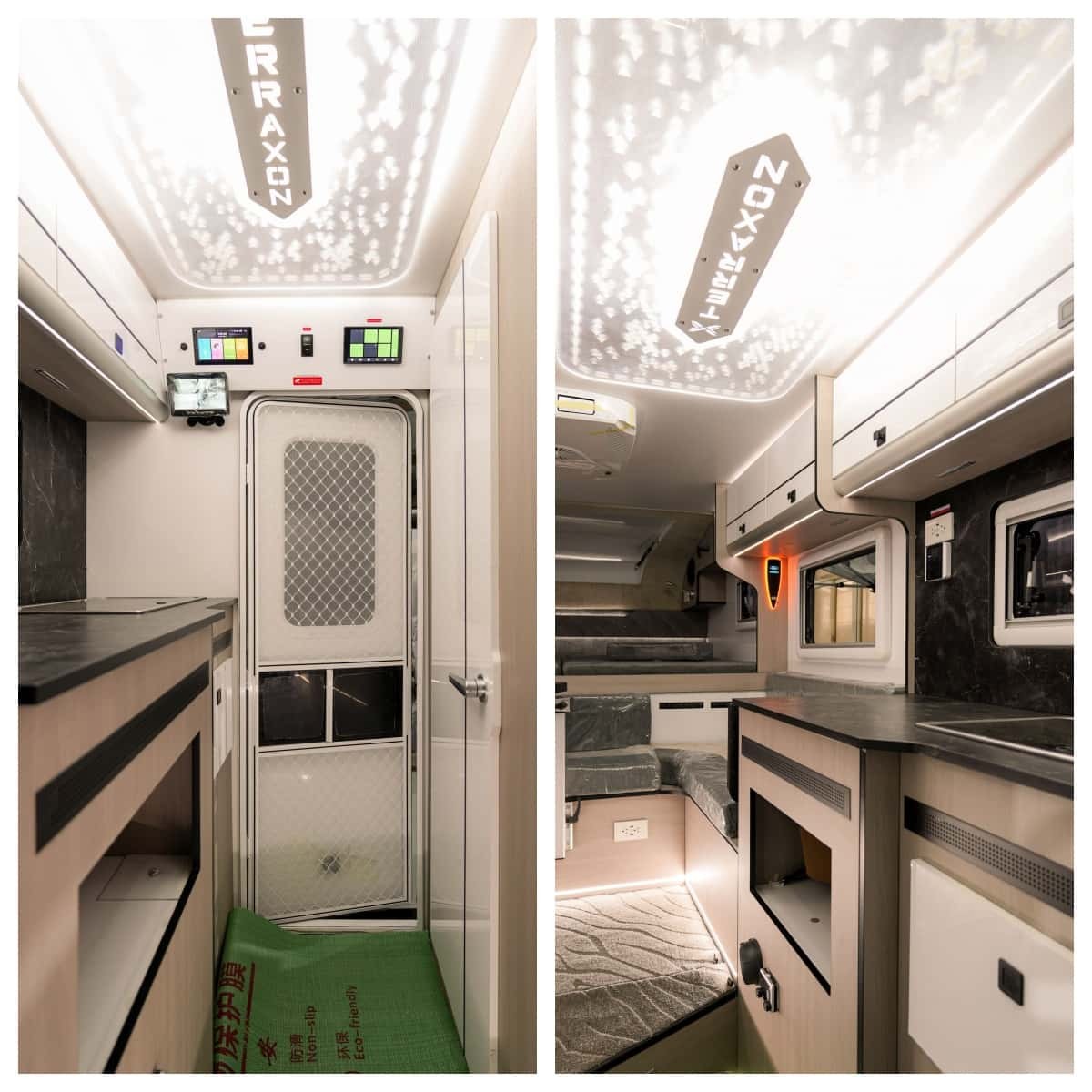

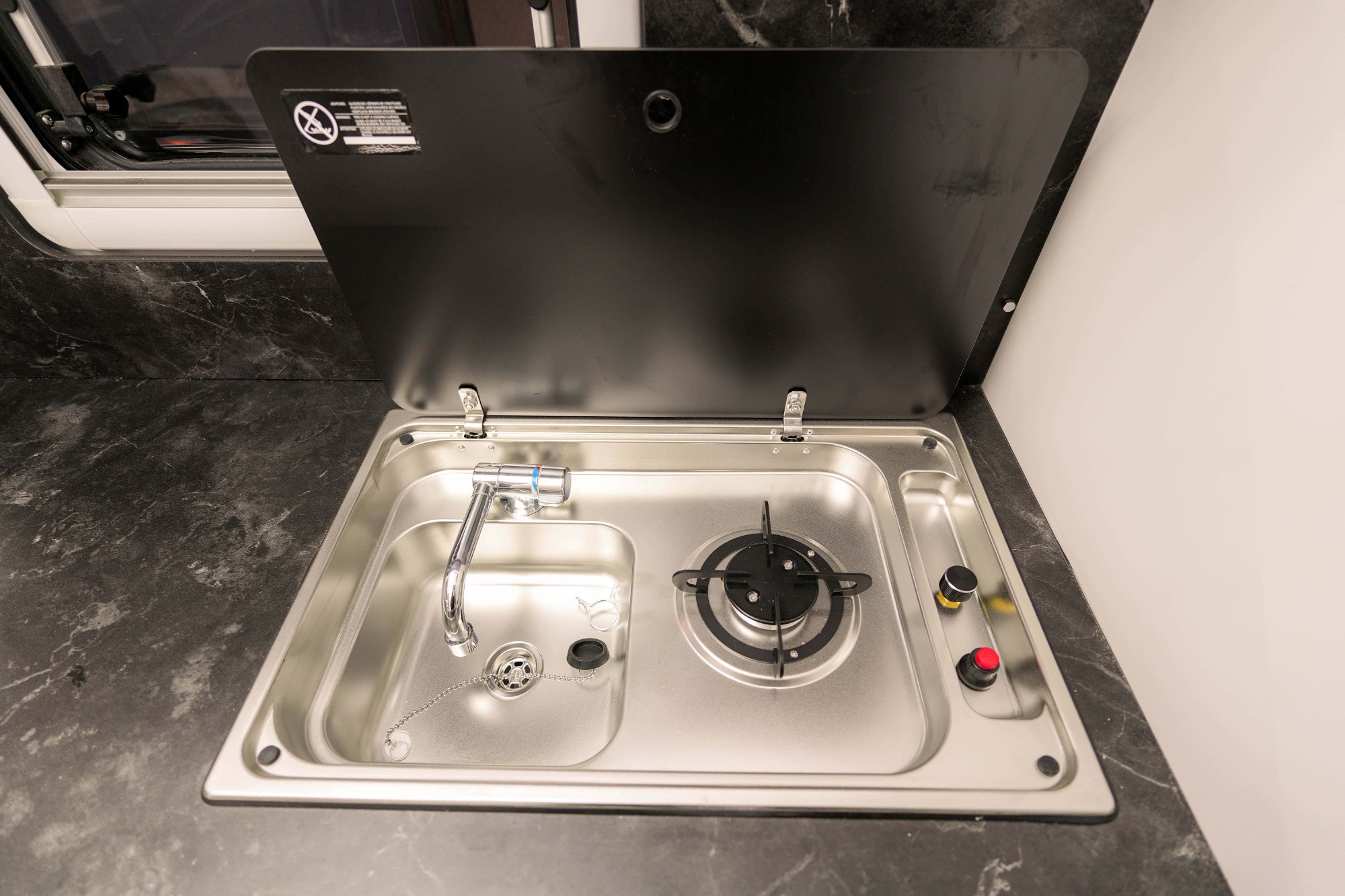

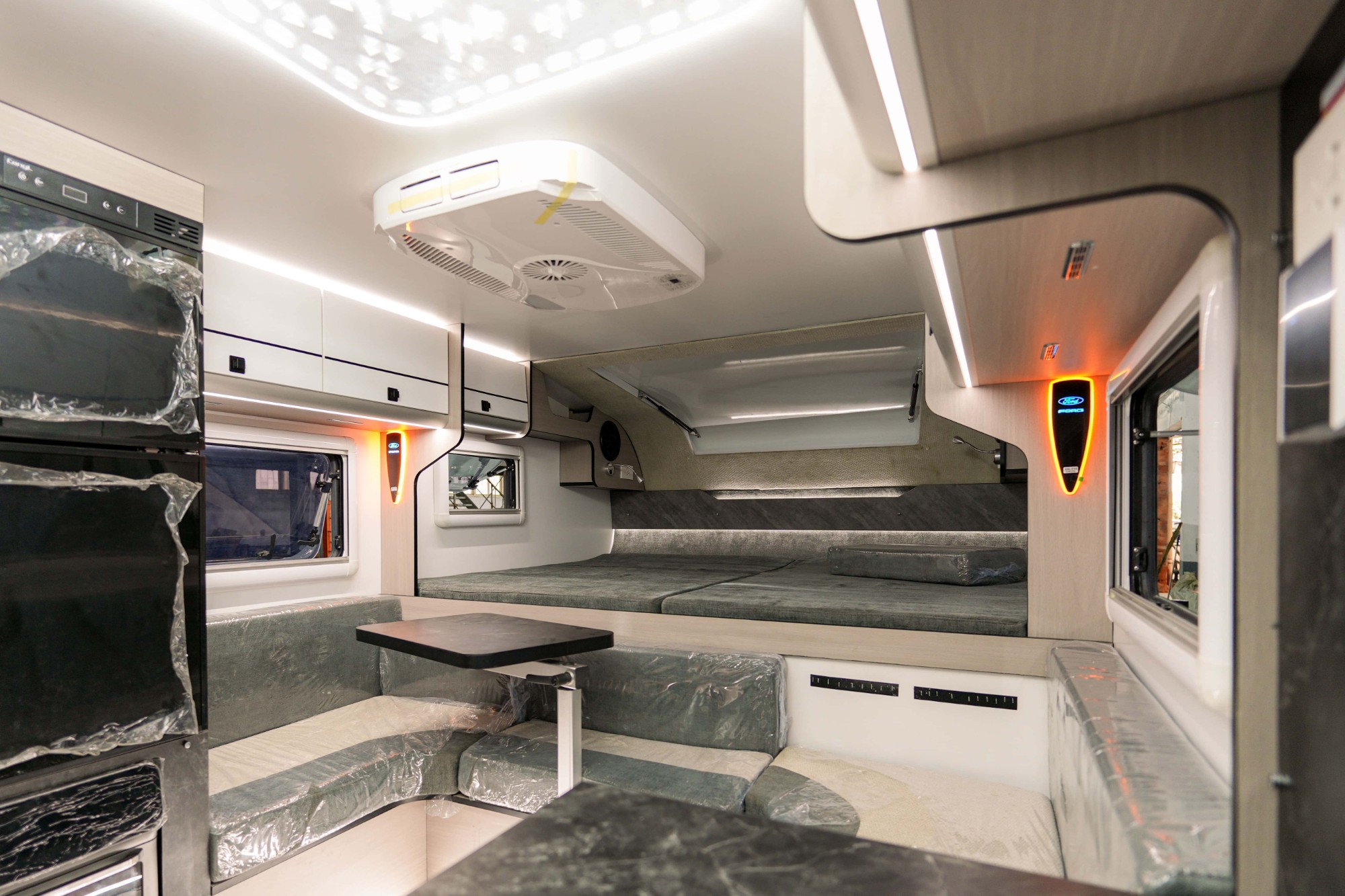

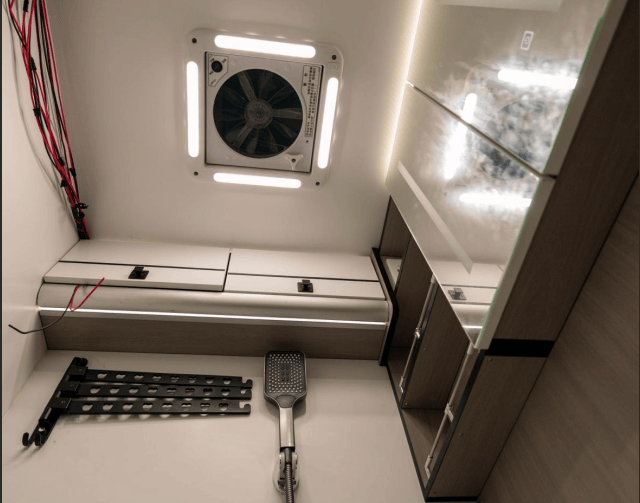

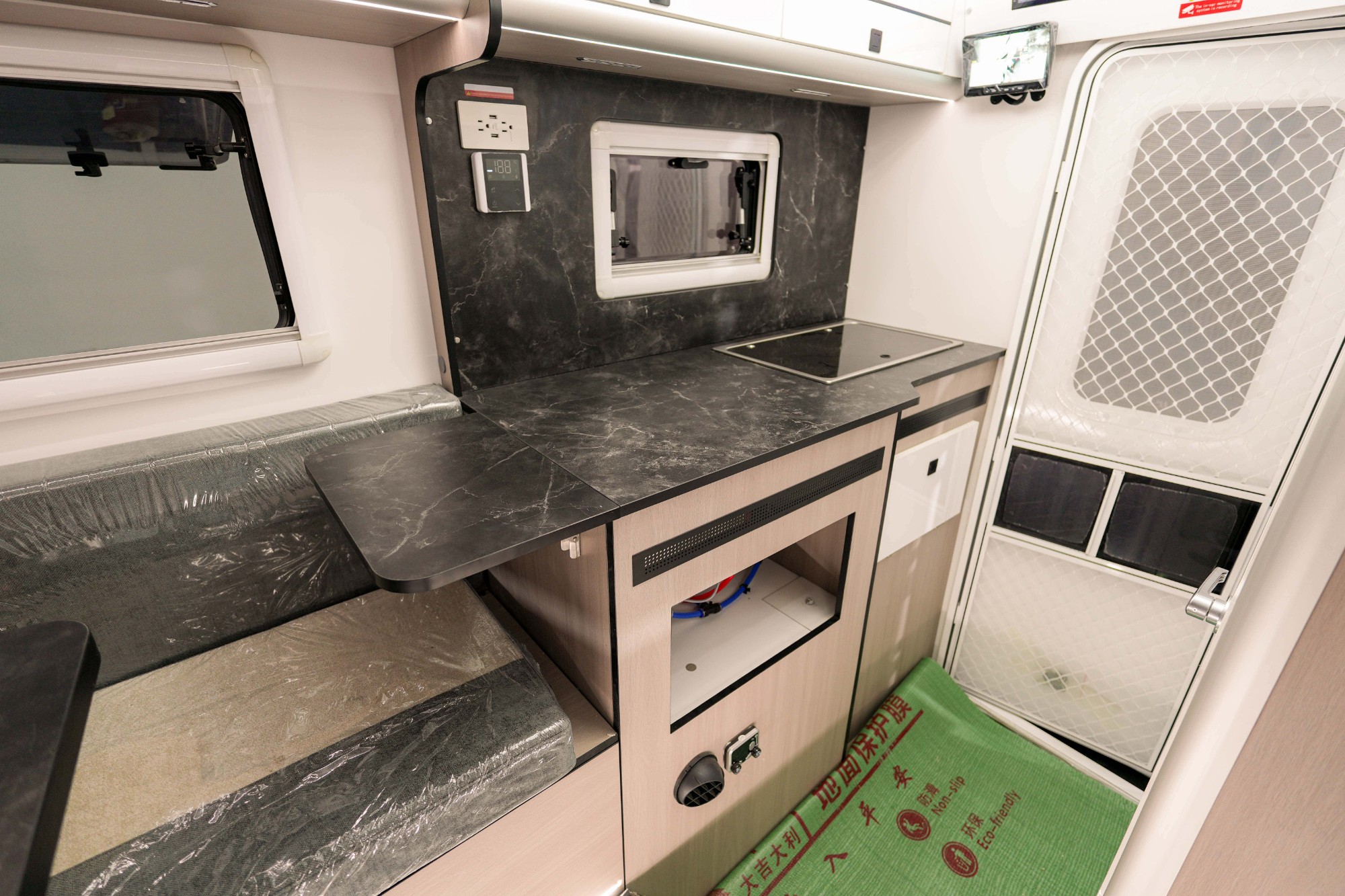

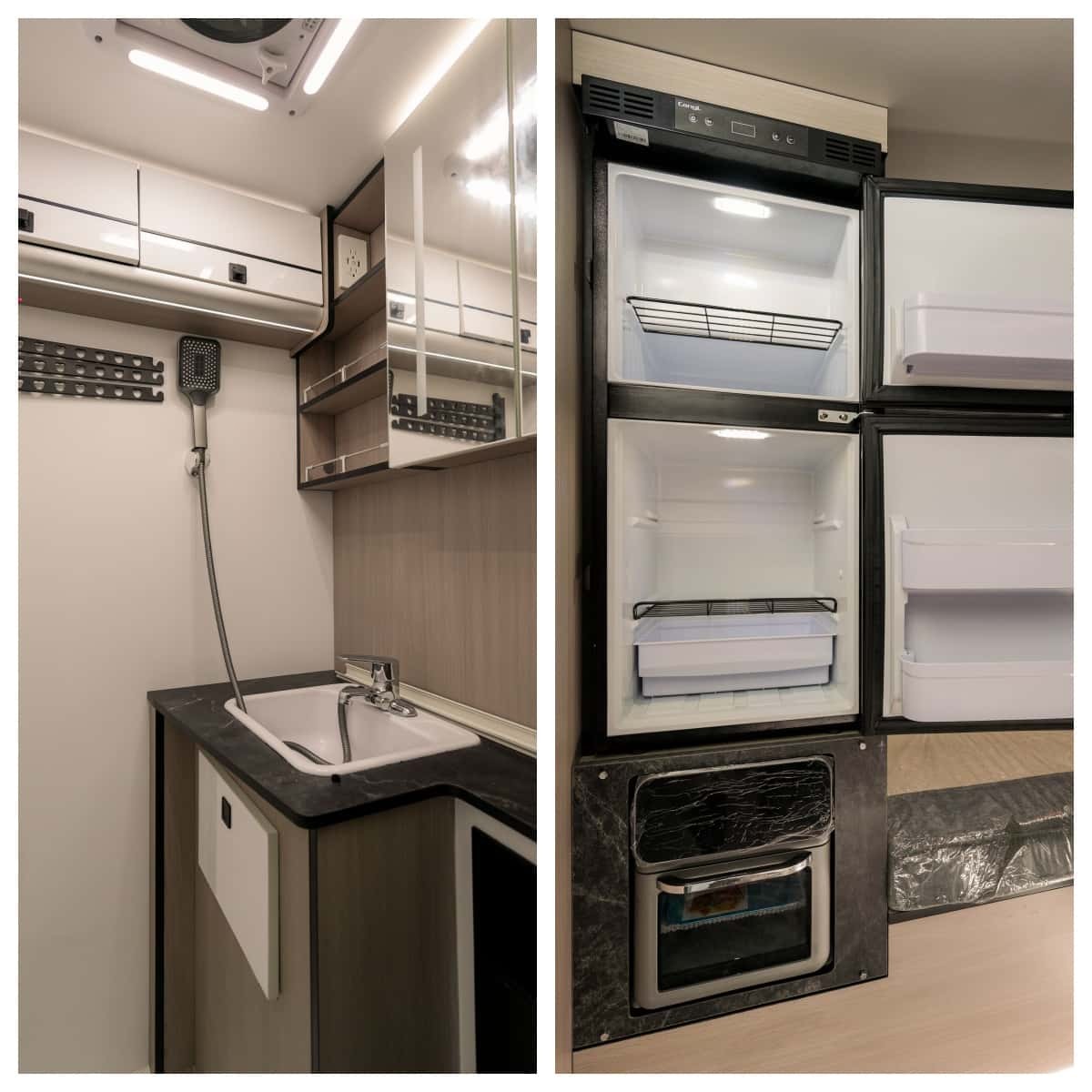

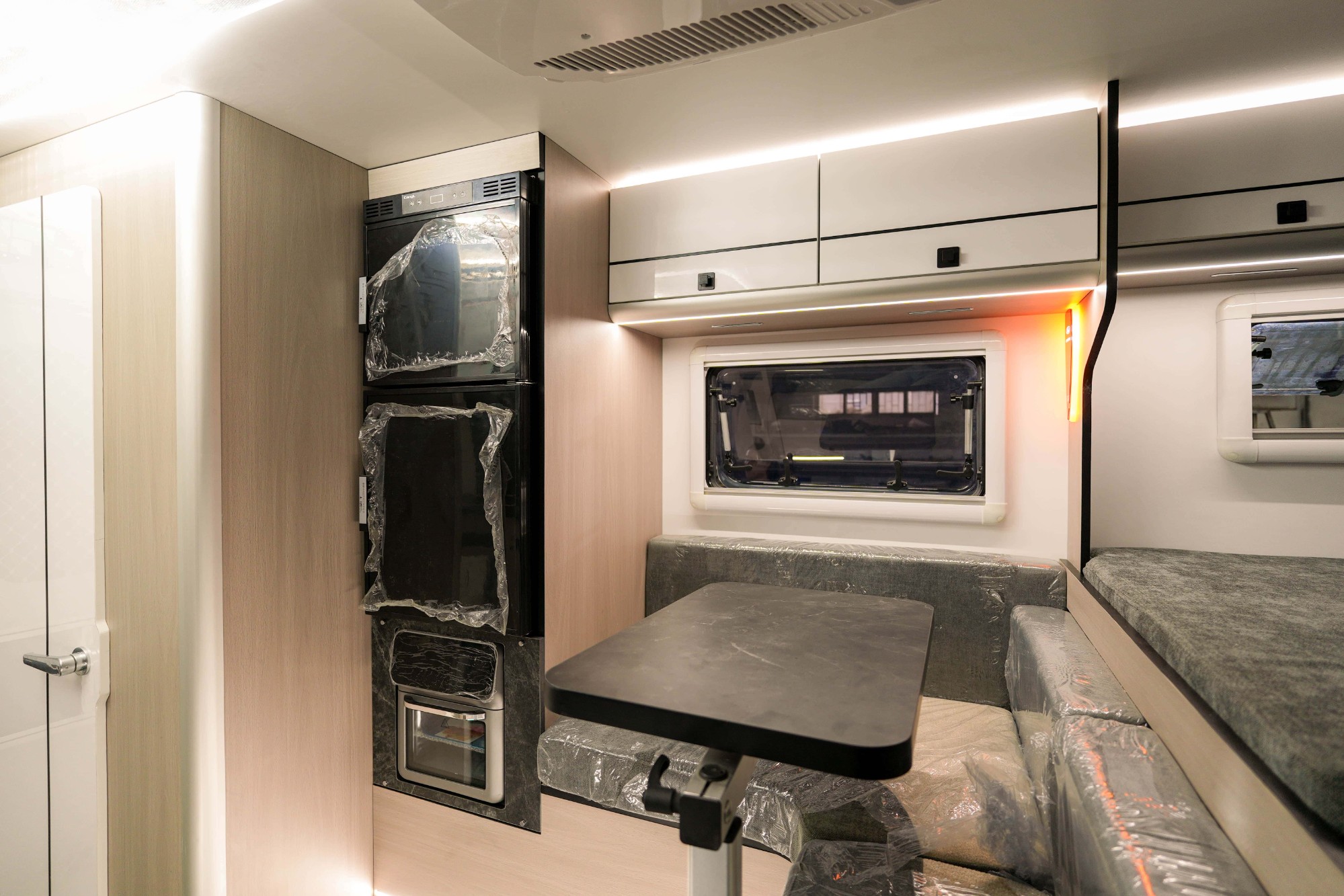

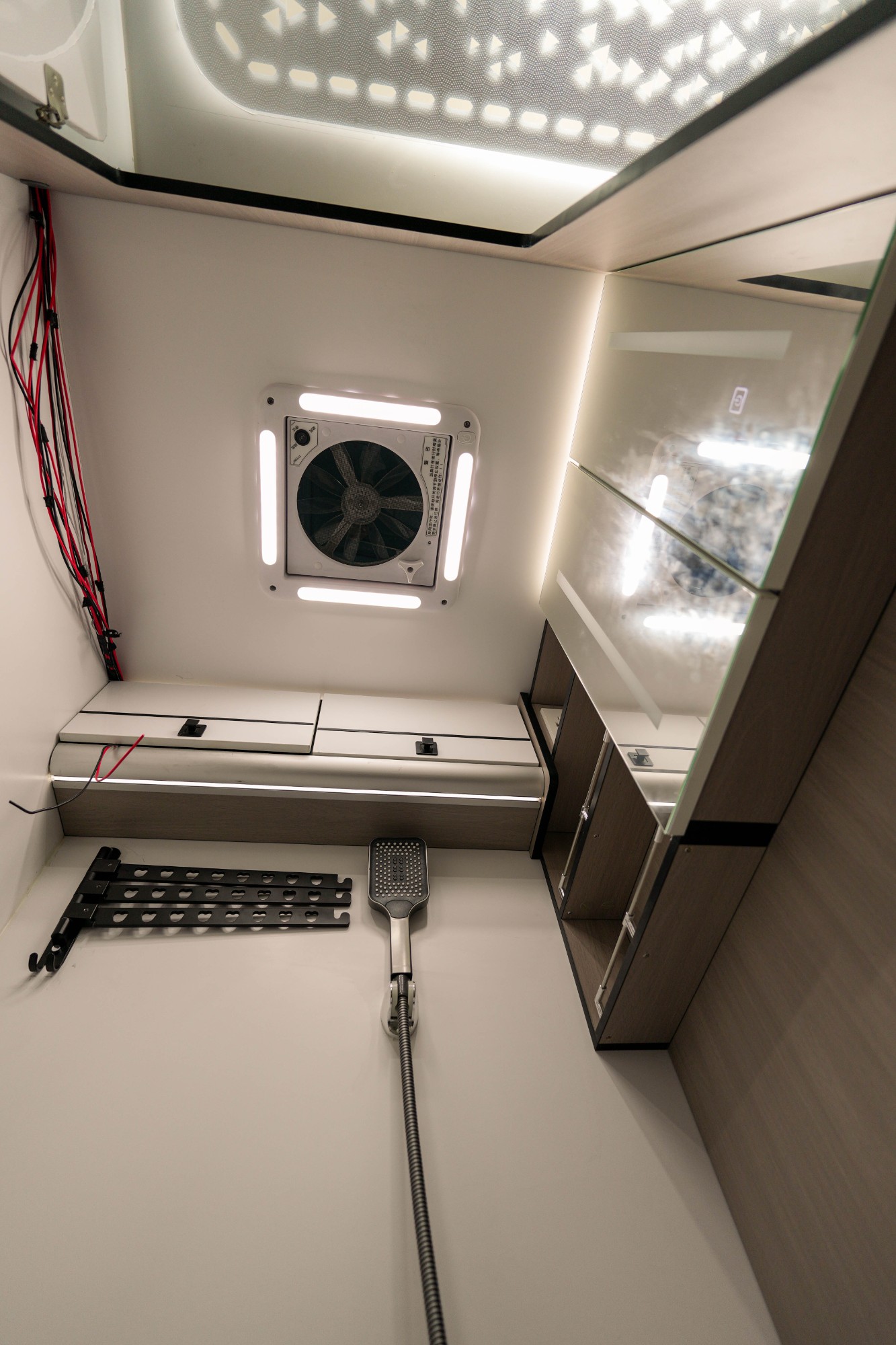

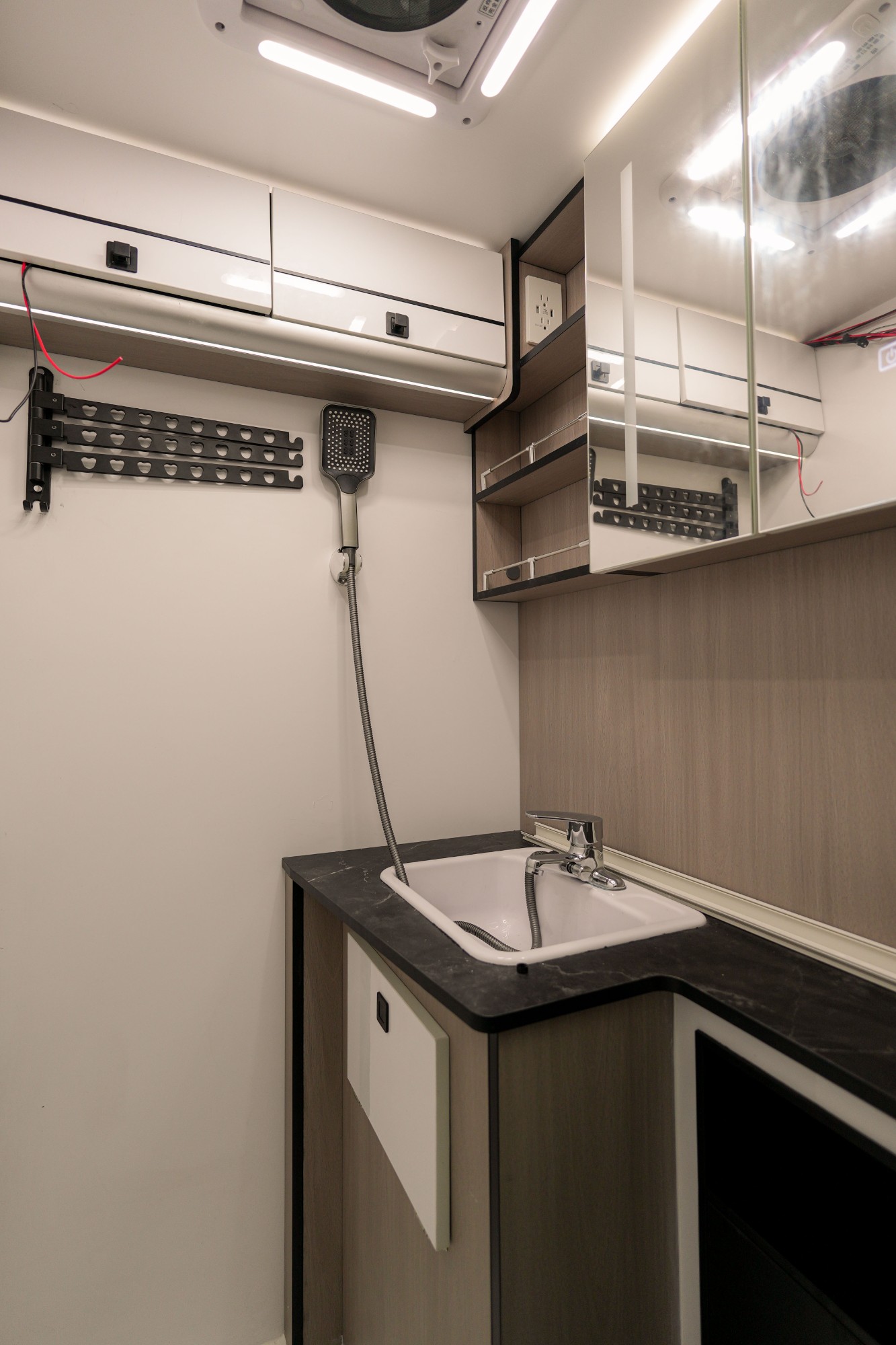

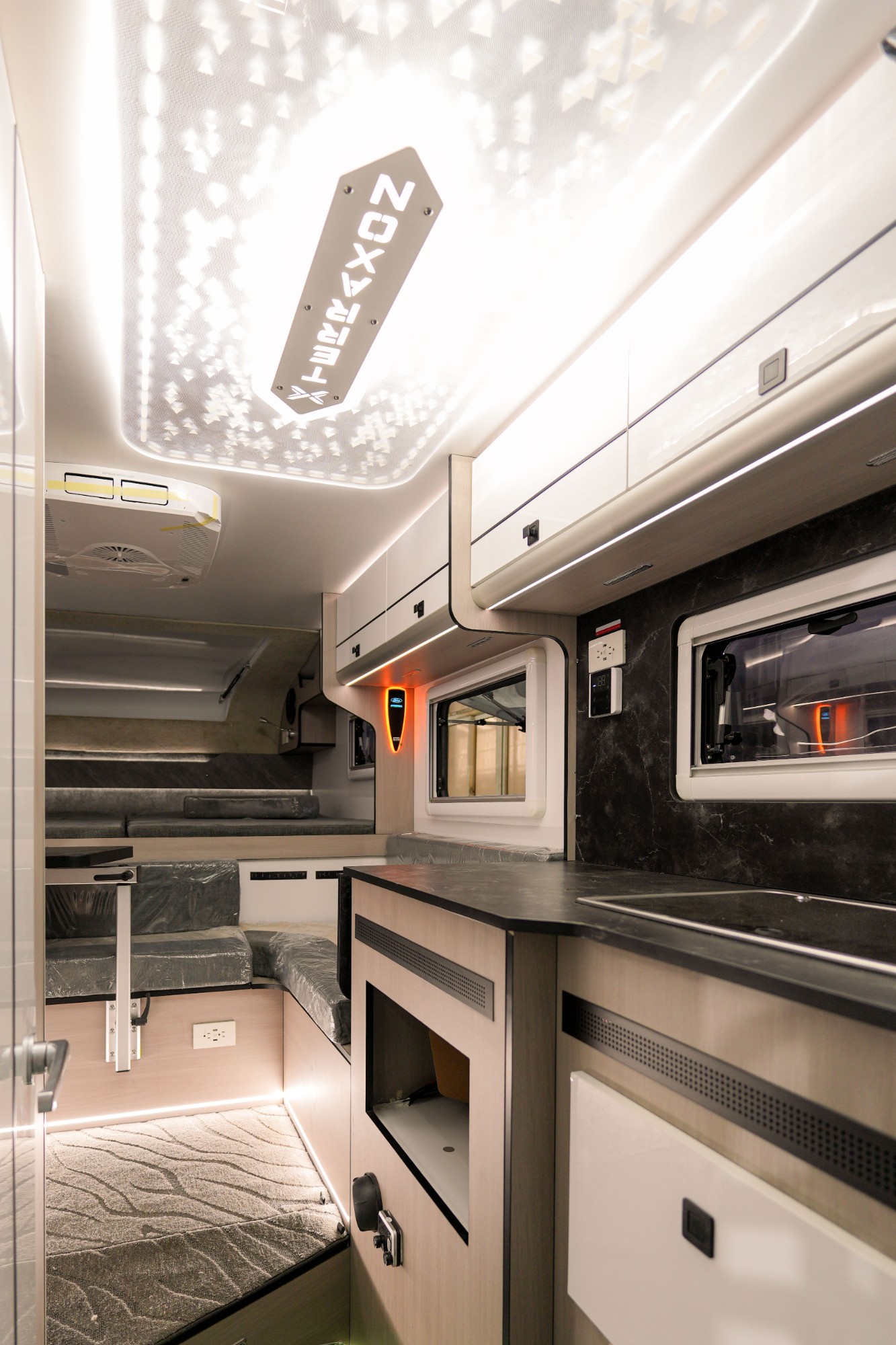

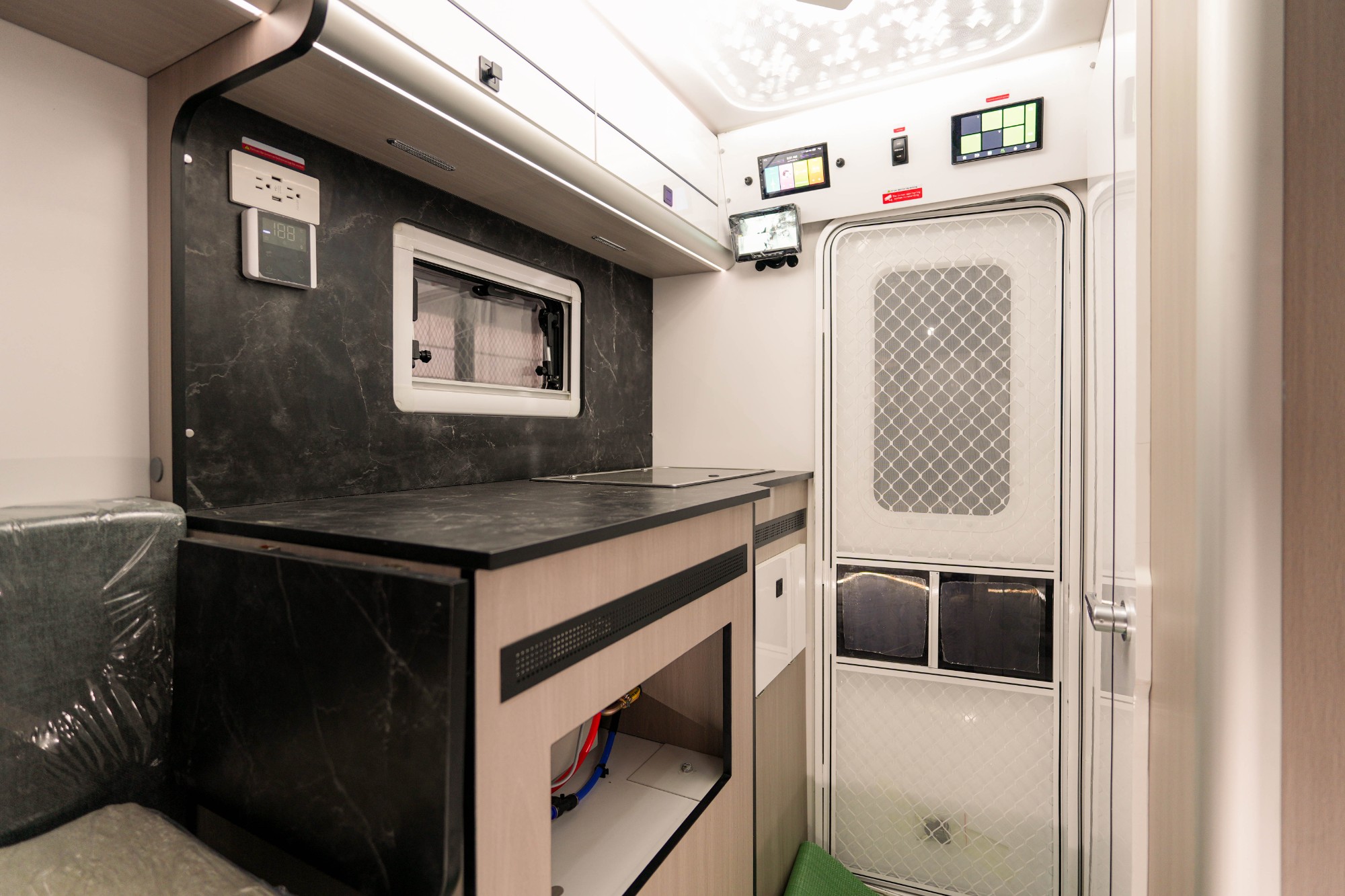

　　Living: Cabover bed (2000×1500mm) + folding table converts to single bed, sleeps up to 3; independent bathroom (portable toilet/washbasin/ventilation fan); integrated sink and gas stove

　　Fuel-efficient & flexible: No separate axle or chassis, lighter than towable trailers, lower fuel consumption. Reversing, turning, and parking same as pickup truck – no towing burden.

　　Upgrade as needed (optional):

　　Power: 600W solar panel / 3000W inverter / smart power system integrated with MPPT/DC-DC/shore charger

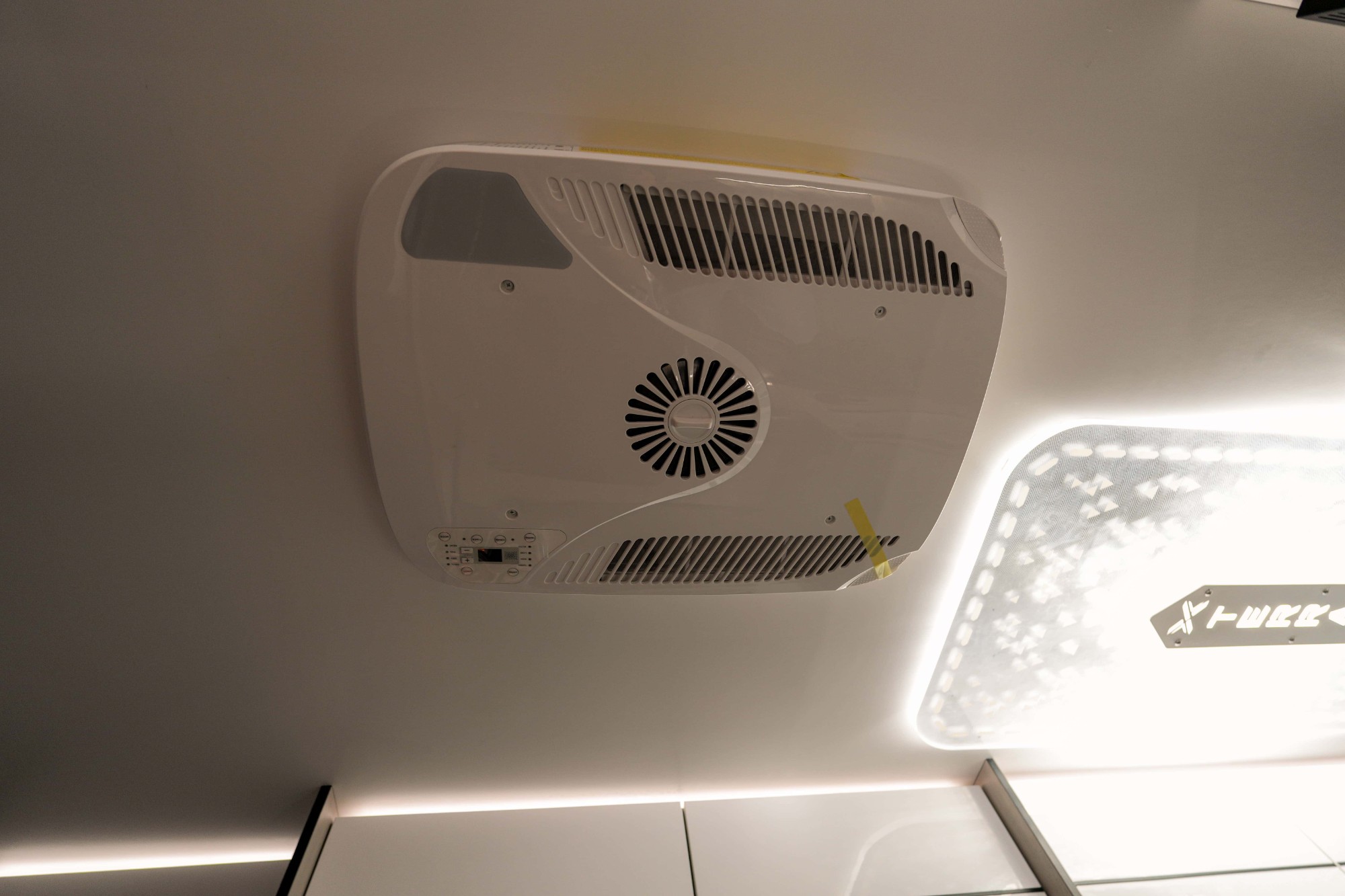

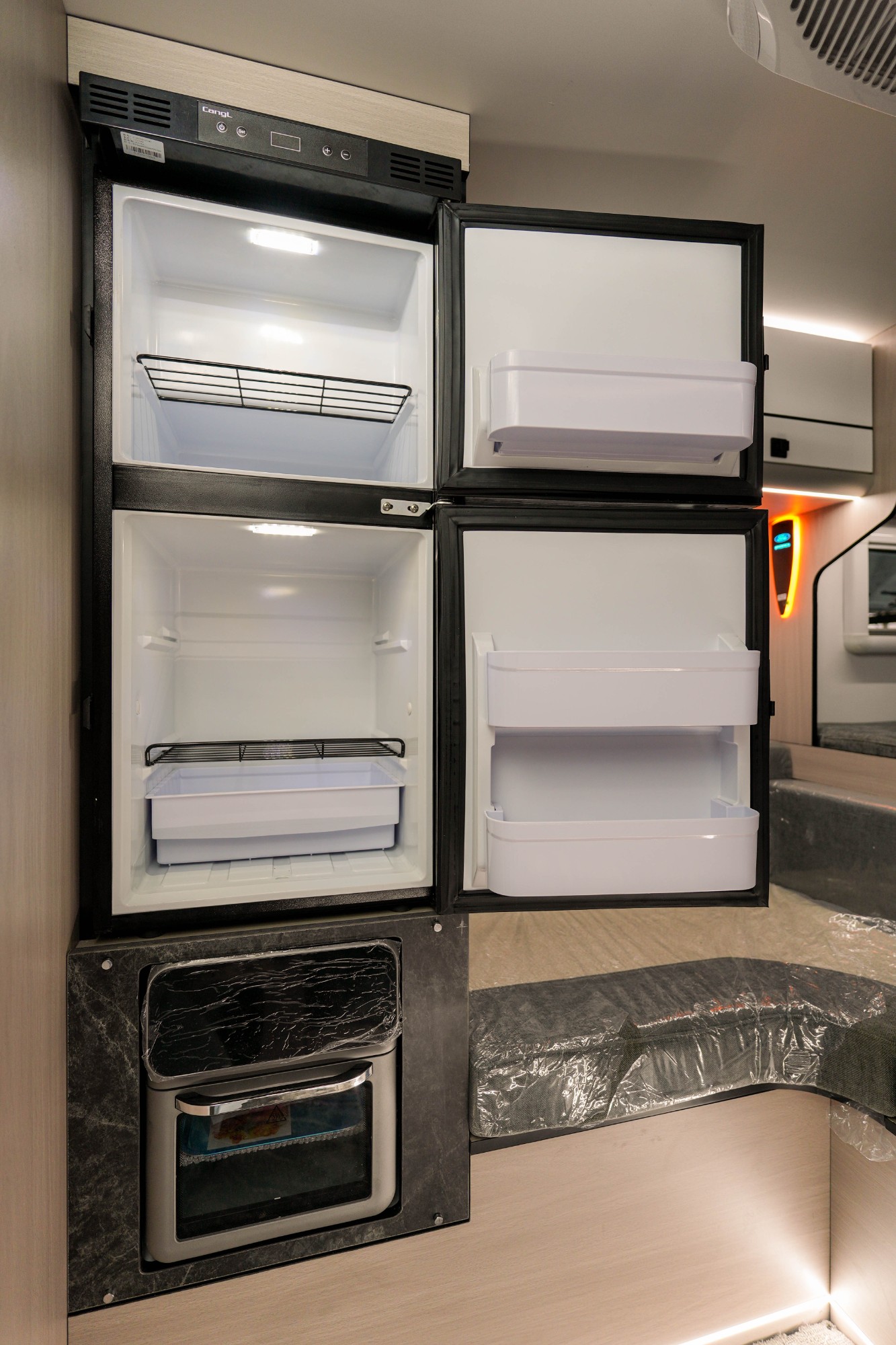

　　Comfort: 12V air-conditioner / 5KW diesel heater / 90L fridge

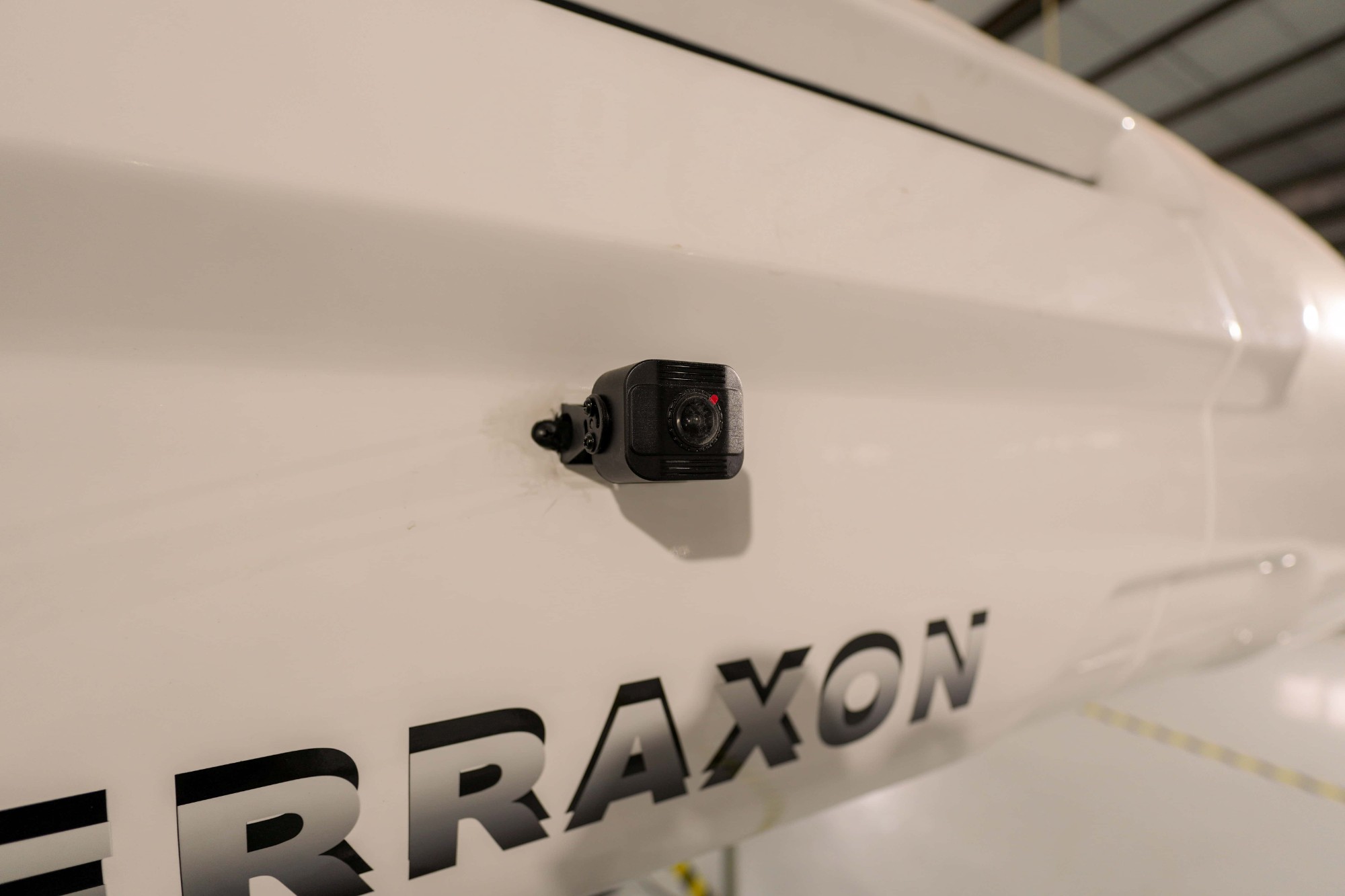

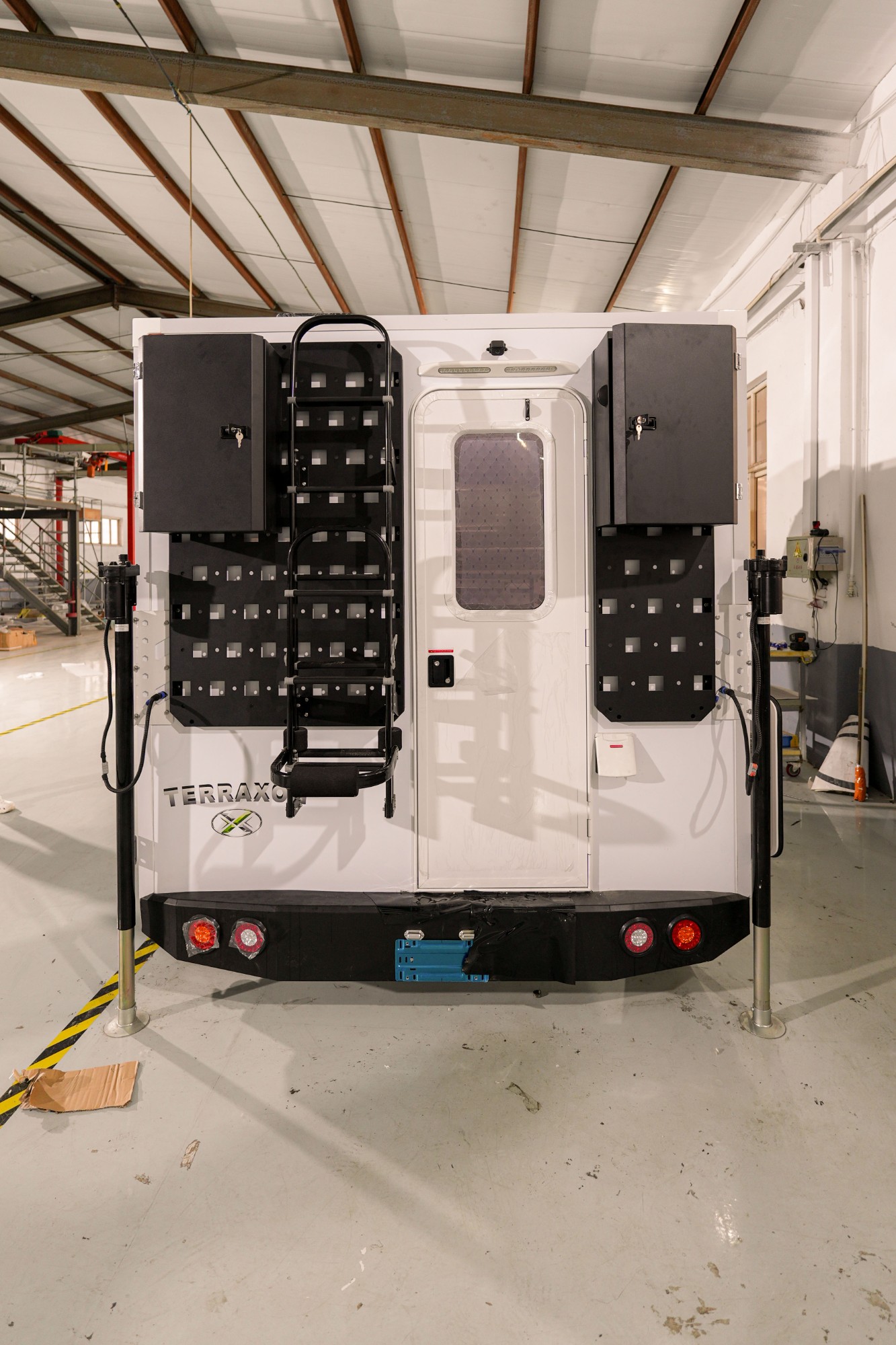

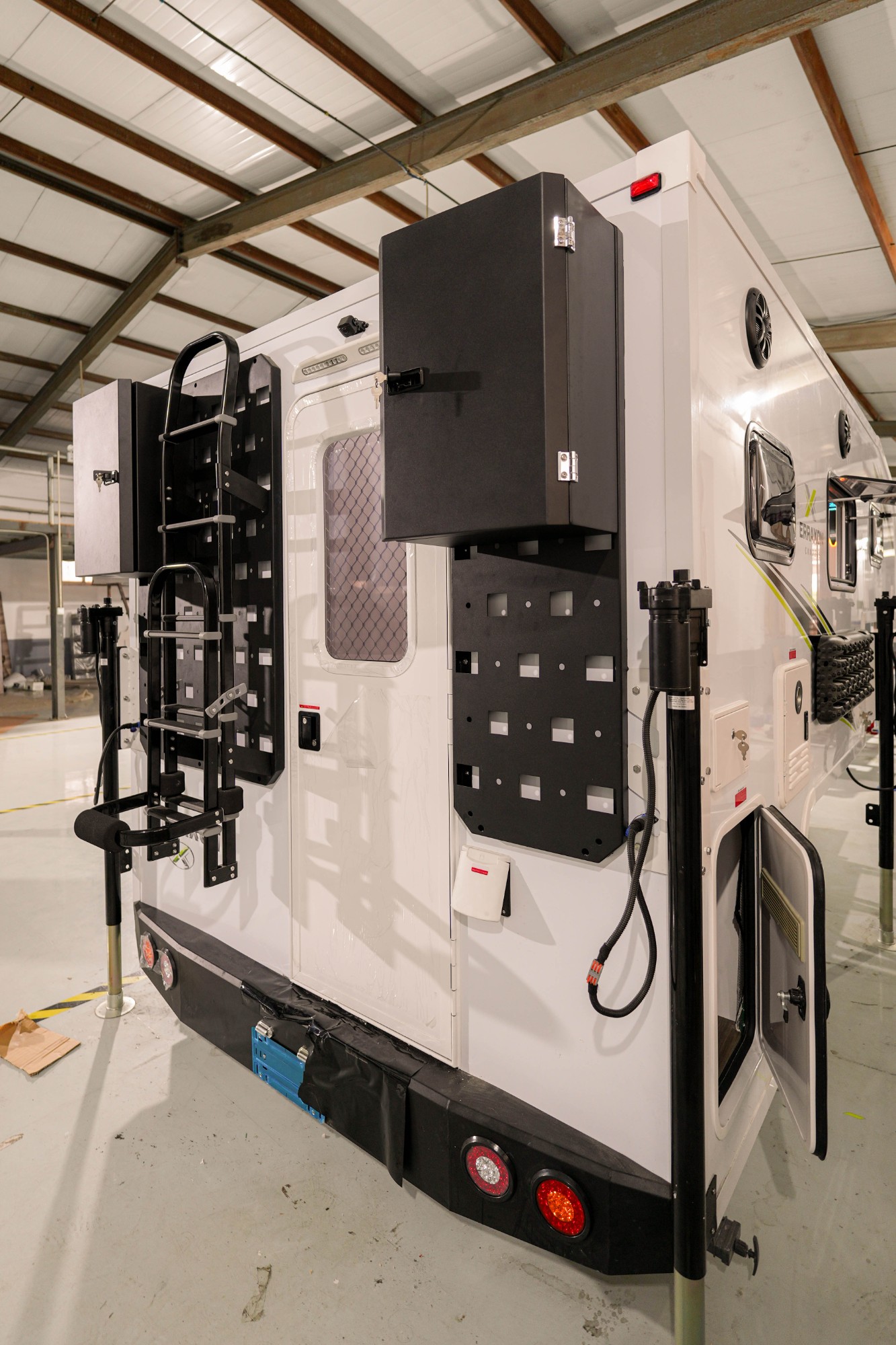

　　Outdoor: 3m electric awning / electric jacks / roof rack kit / rear ladder / 360° camera

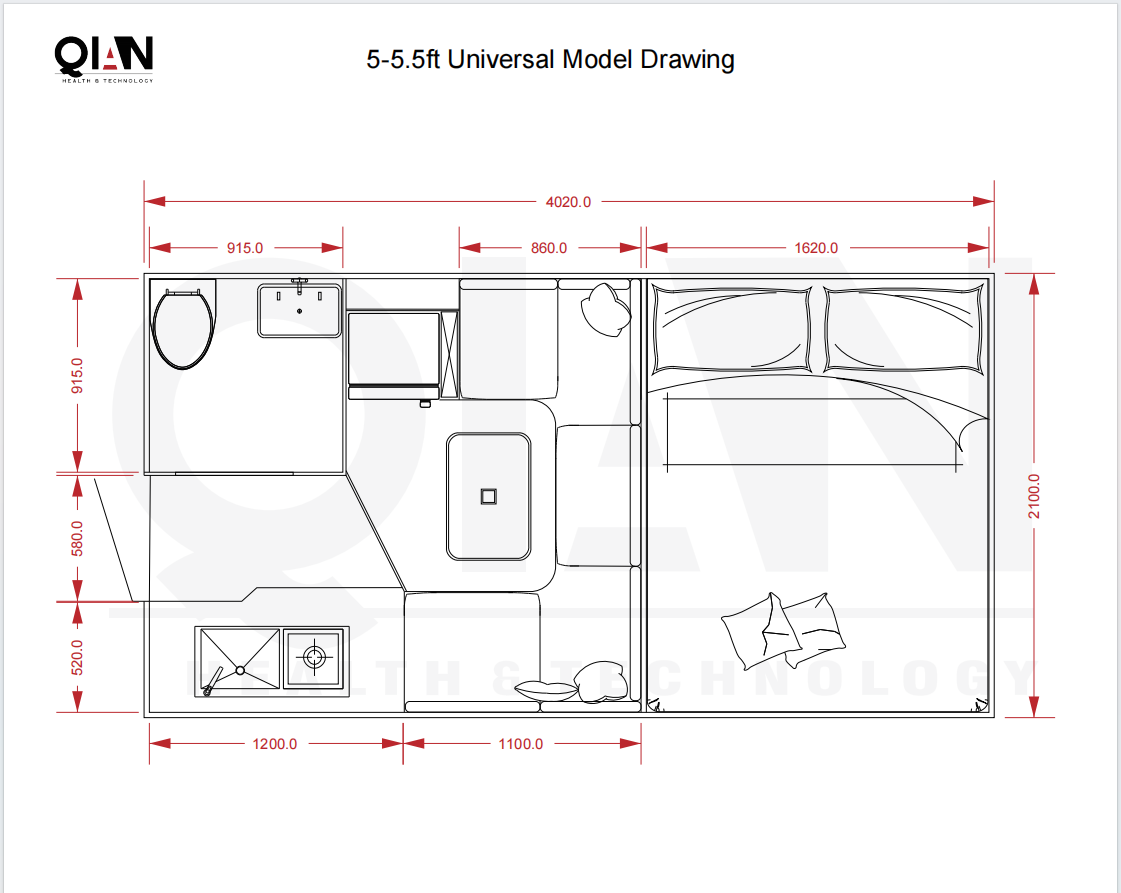

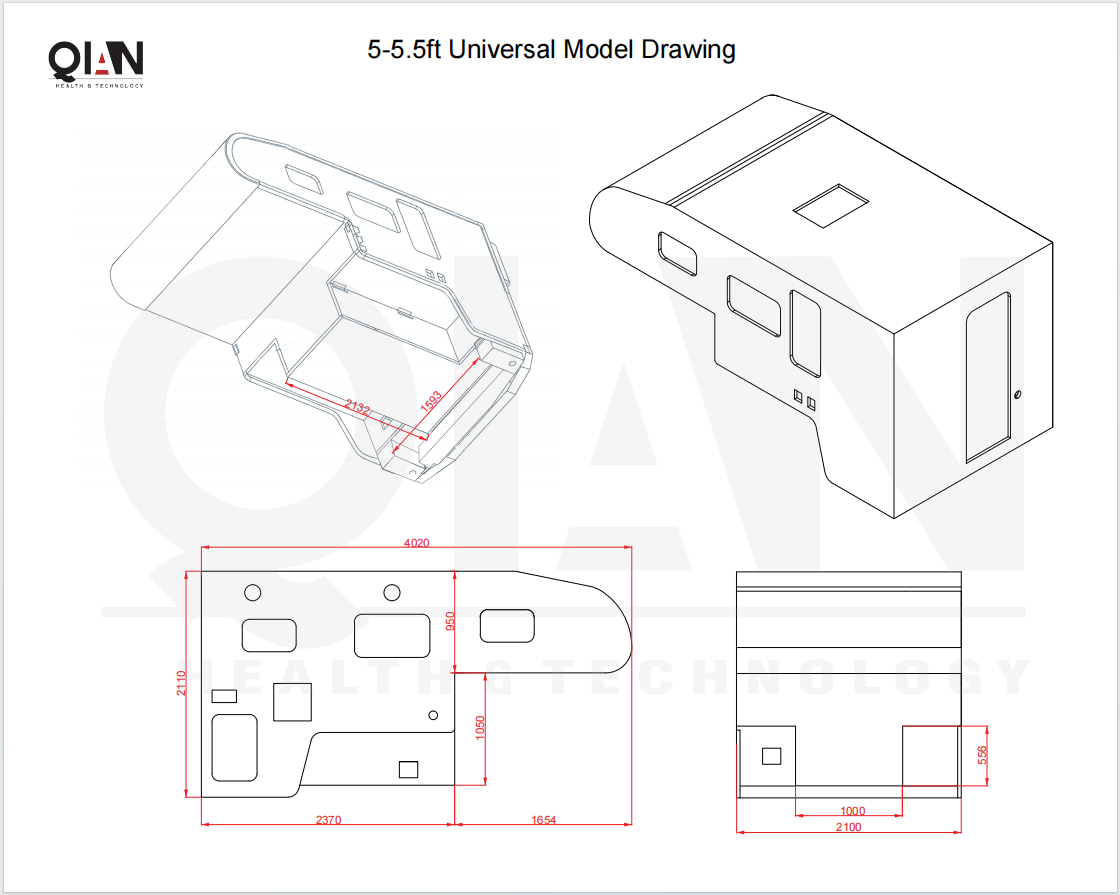

　　Flexible customization: Base floor length 2365mm, extension fee US$180 for every 10cm increase. Wooden box package available for LCL sea shipment.

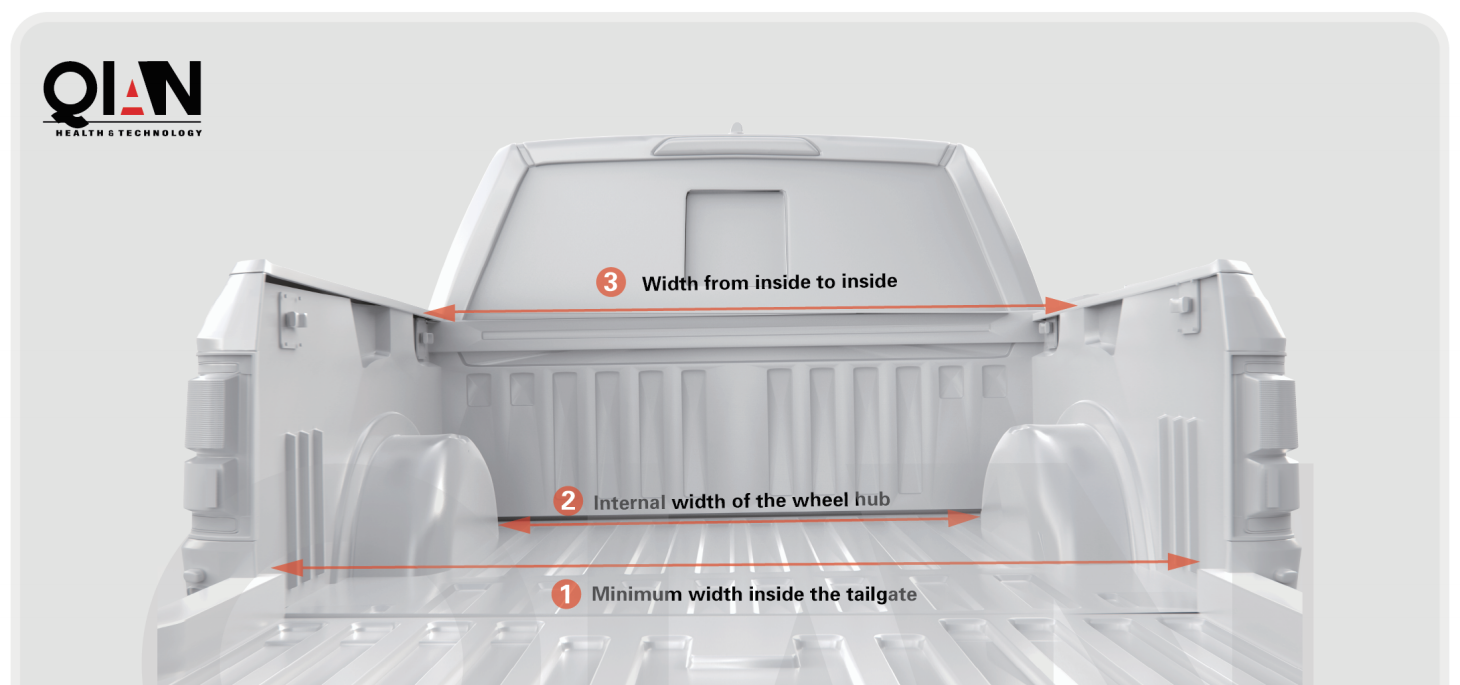

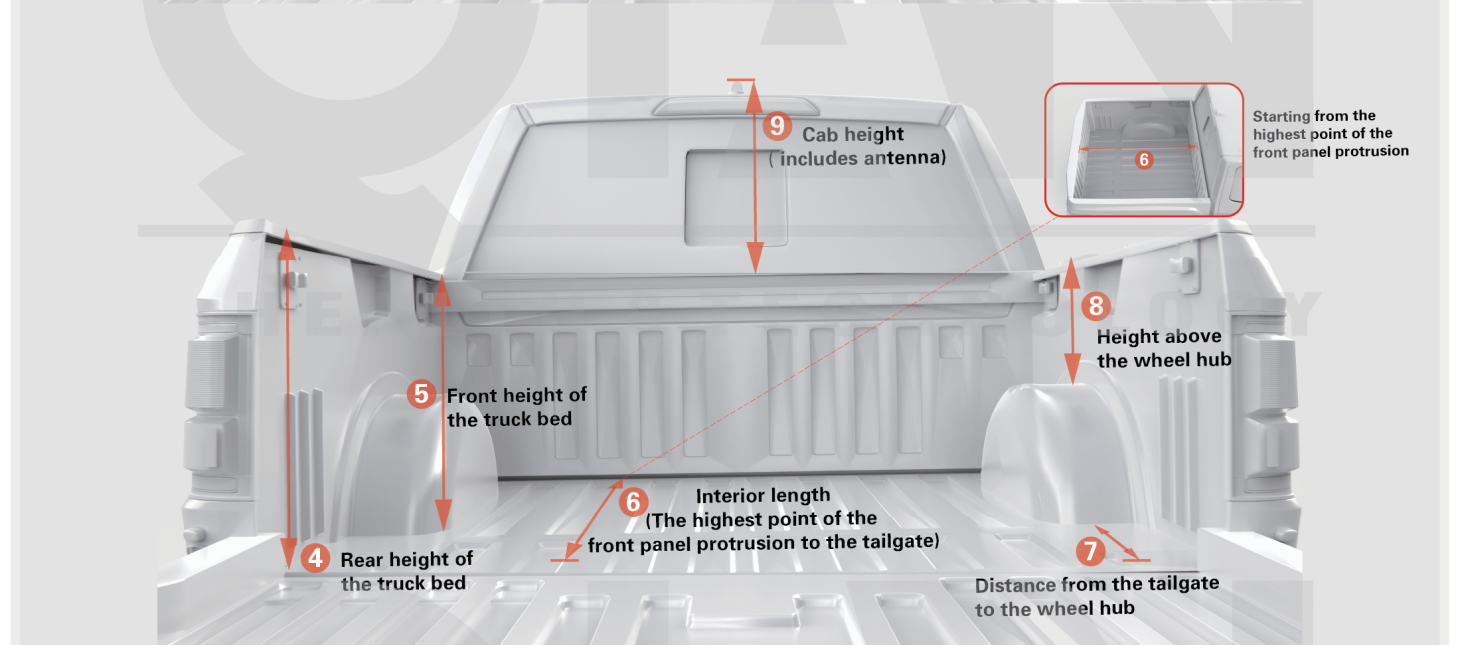

Measurement method
