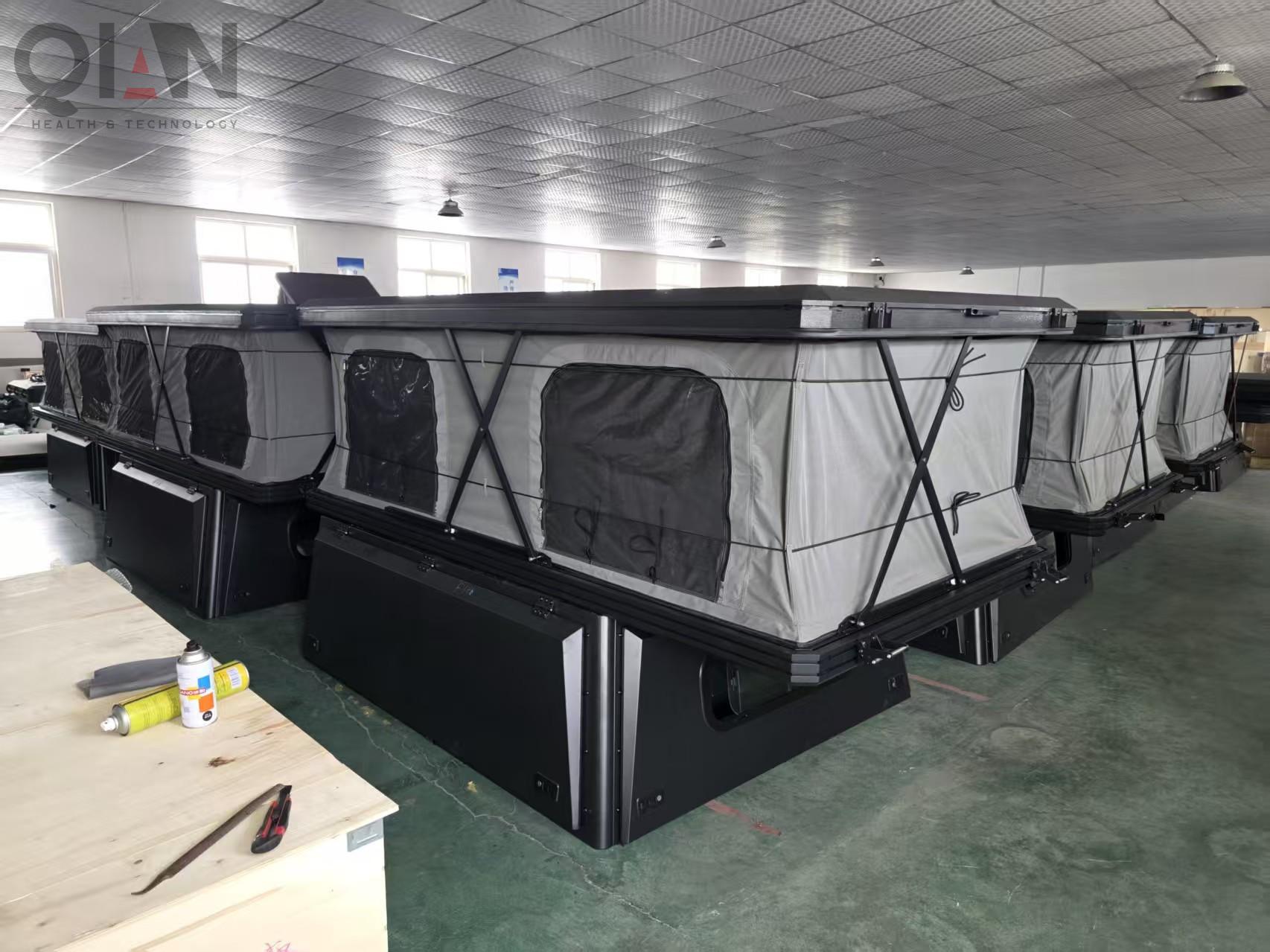

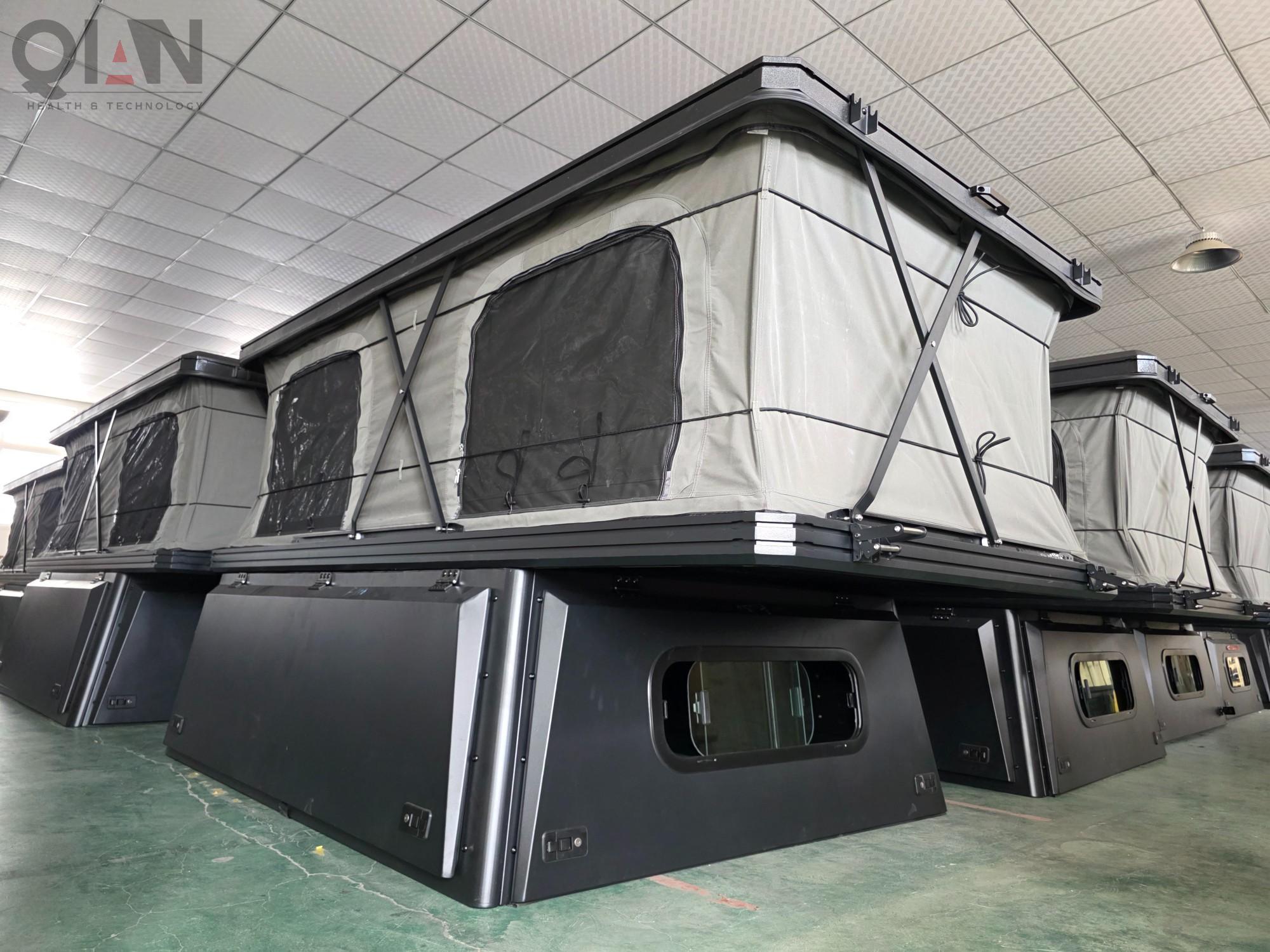

TP06B Truck Topper

Model: TP06B

Material: 3mm black powder coated aluminum, Ripstop polyester with a weight of 360 GSM

Total weight: 200KG

Size:L2770*W1530*H1100mm when open,L2770*W1560*H210mm when close

Package Size:Wooden box package ① L280*W180*H27cm ② L168/198*W79*H40cm

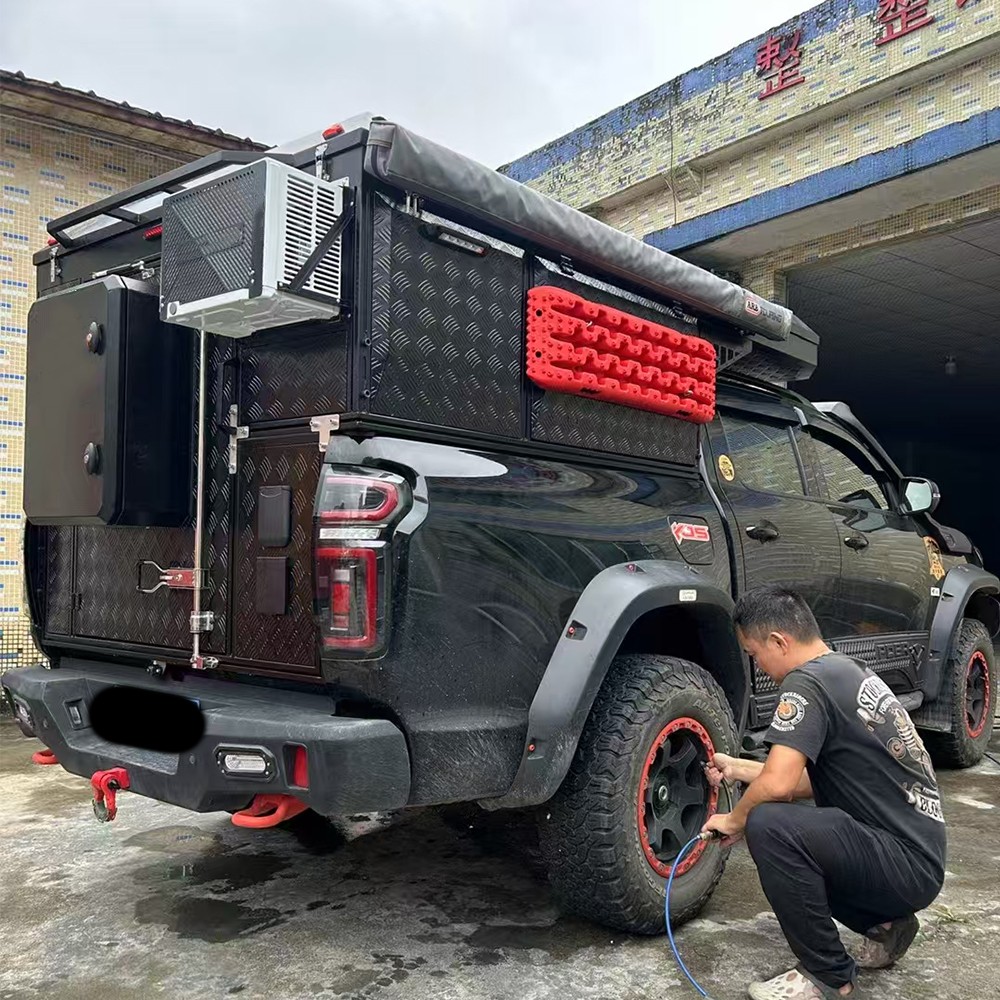

CANOPY

– Front and rear sliding glass windows that is lockable from the inside

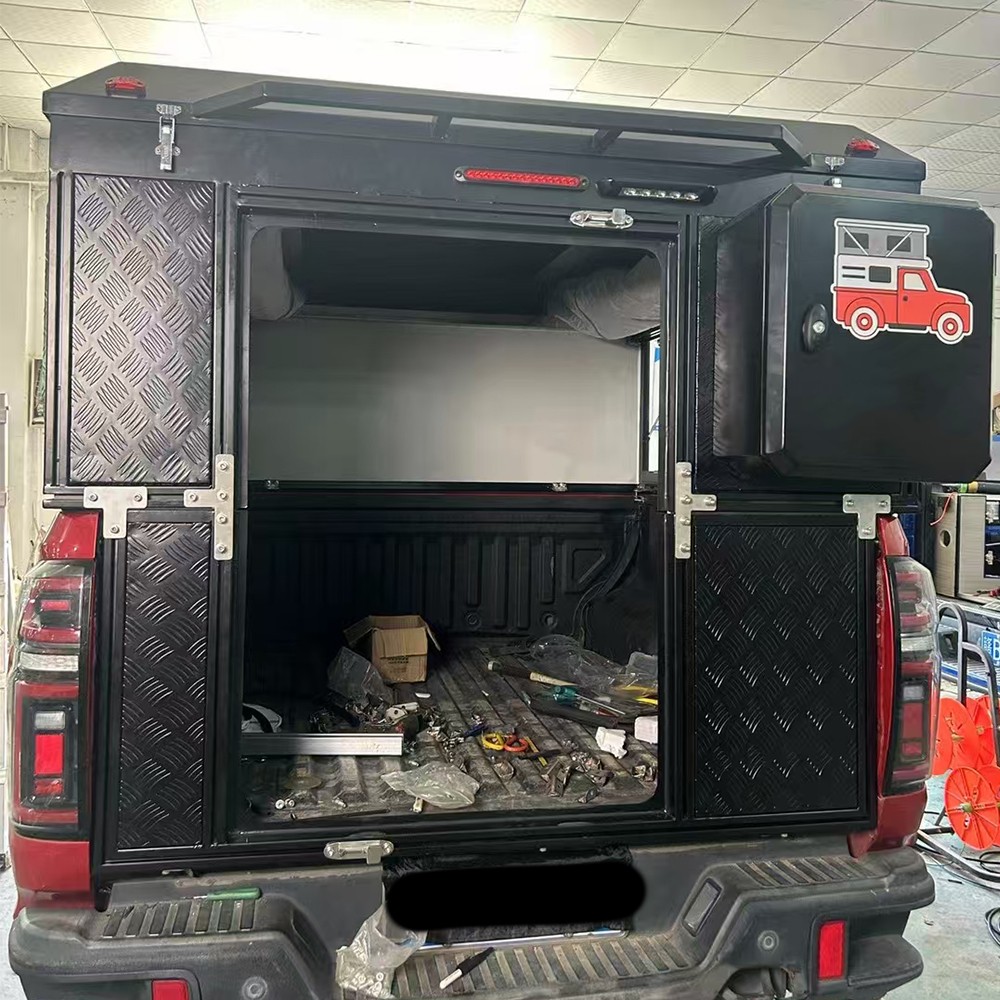

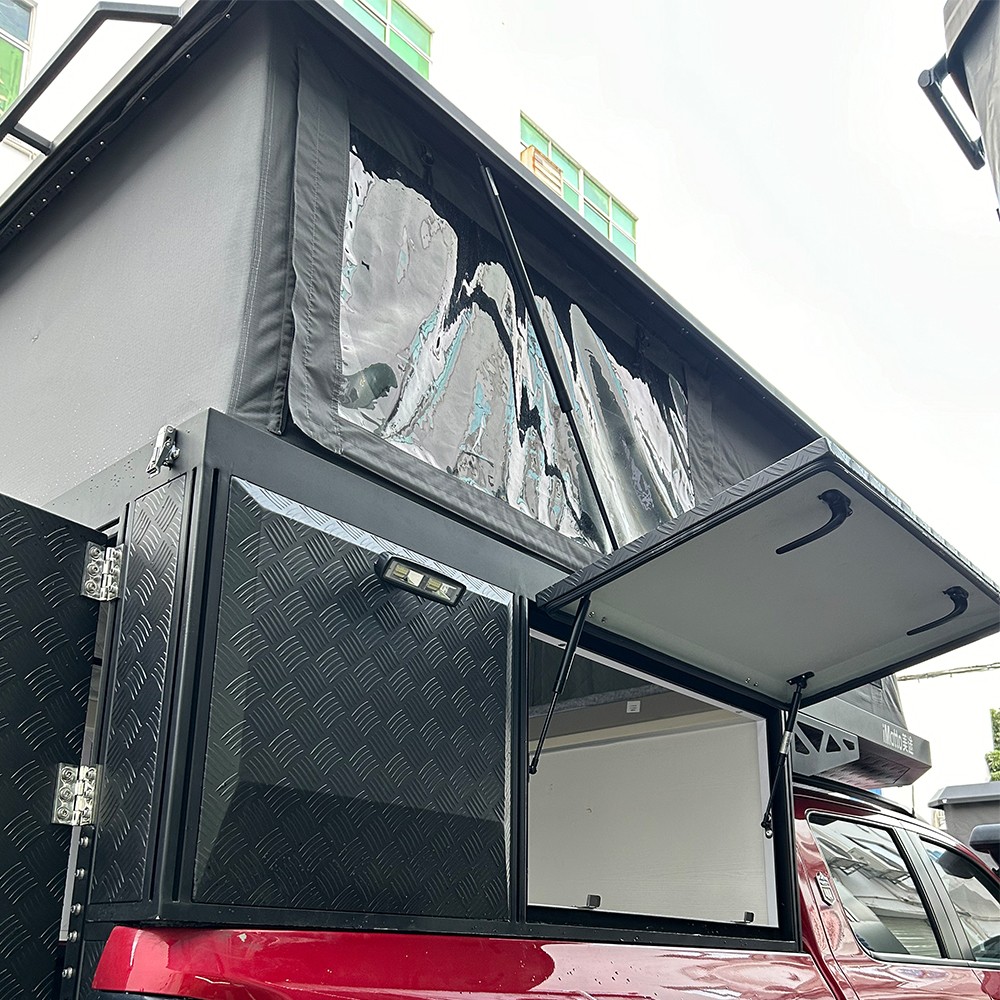

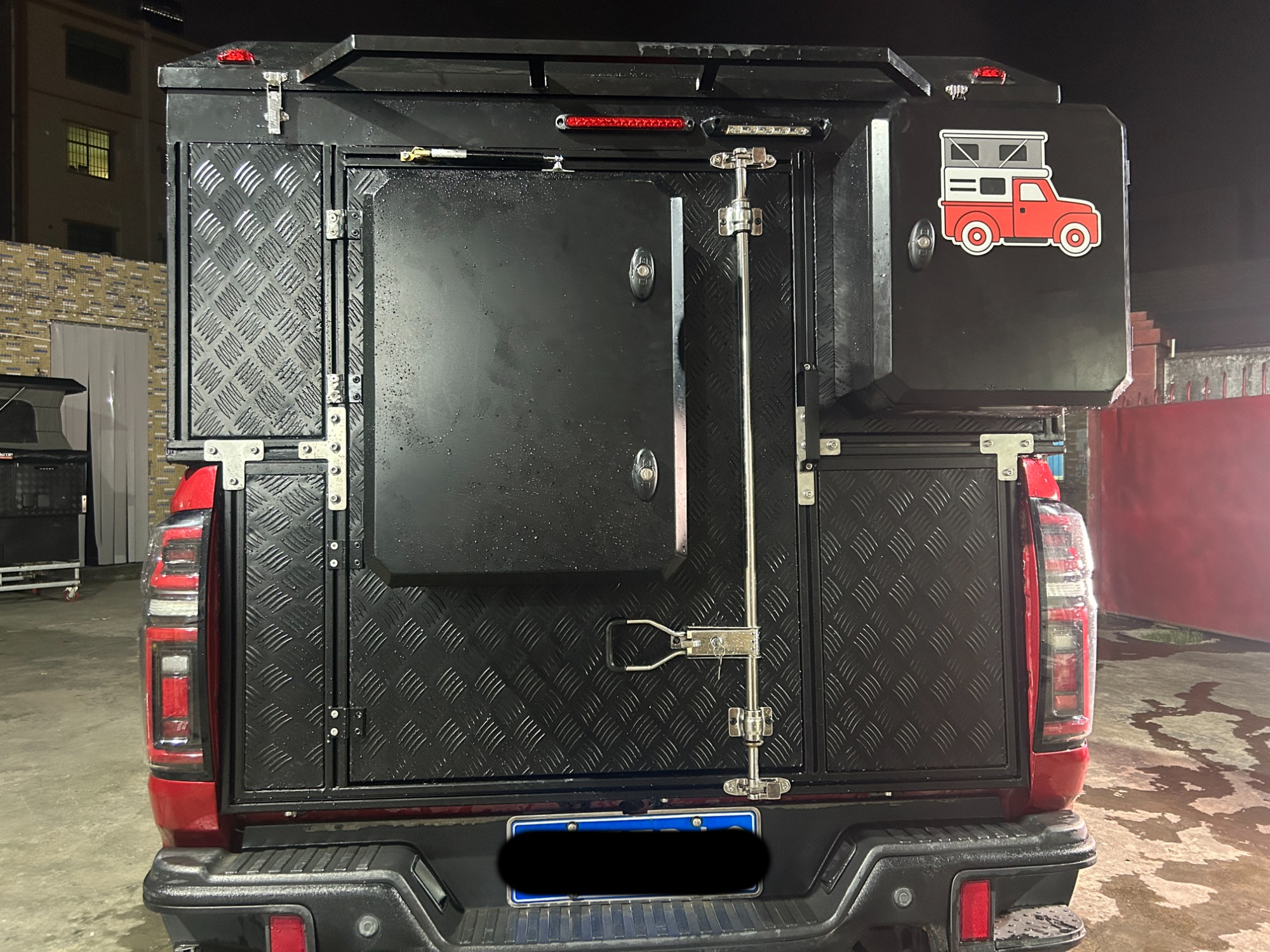

– 3 keyed large lockable doors that opens up for easy access to the gear inside. No crossbars to limit access.

– Channels to run electrical cables on the inside

– MOLLE panels on 3 sides and M8 connections throughout

– 1/8″ black powder coated aluminum, formed and welded.

– 1” aluminum composite panel roof with framed substructure for rigidity.

– Stainless steel hardware and aluminum rivets

– Quality weatherstripping throughout at all the seams to keep out water and dust

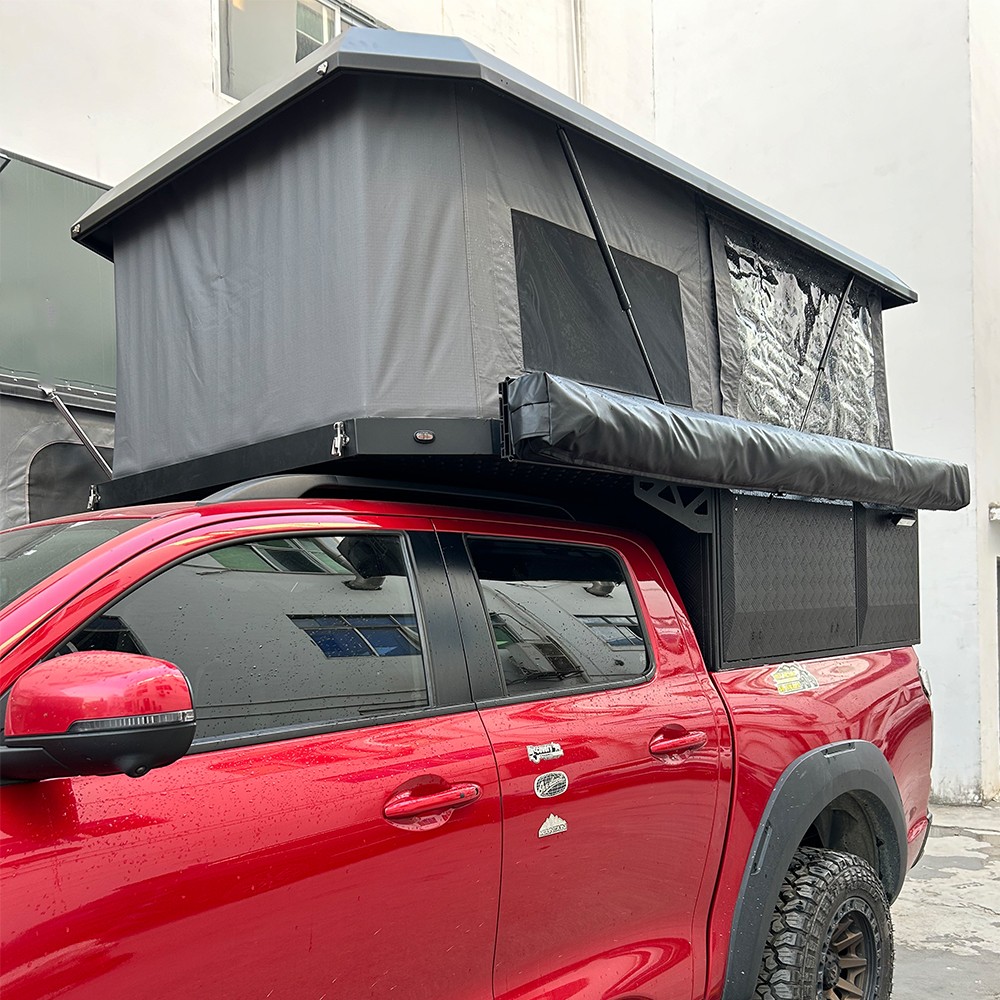

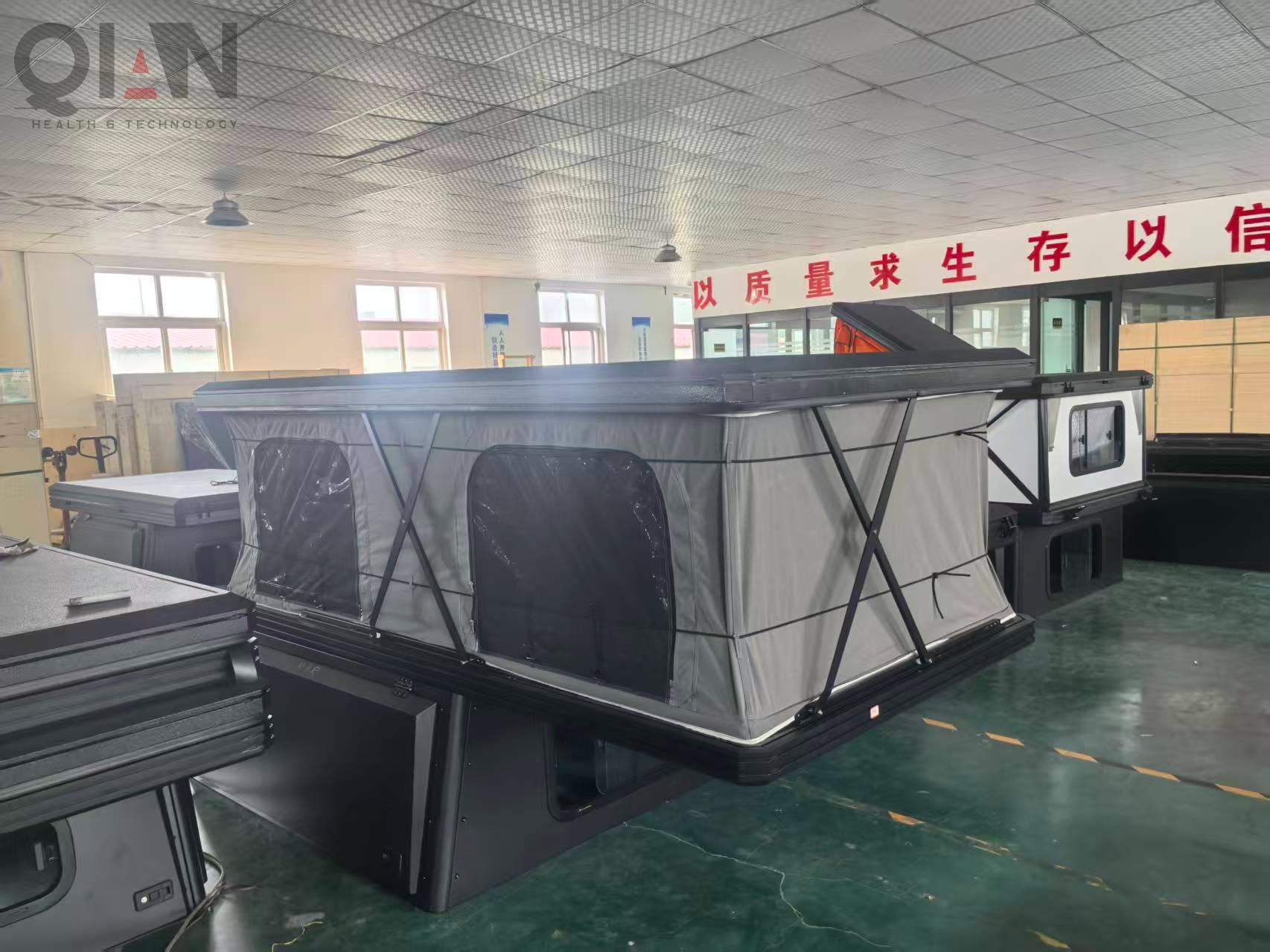

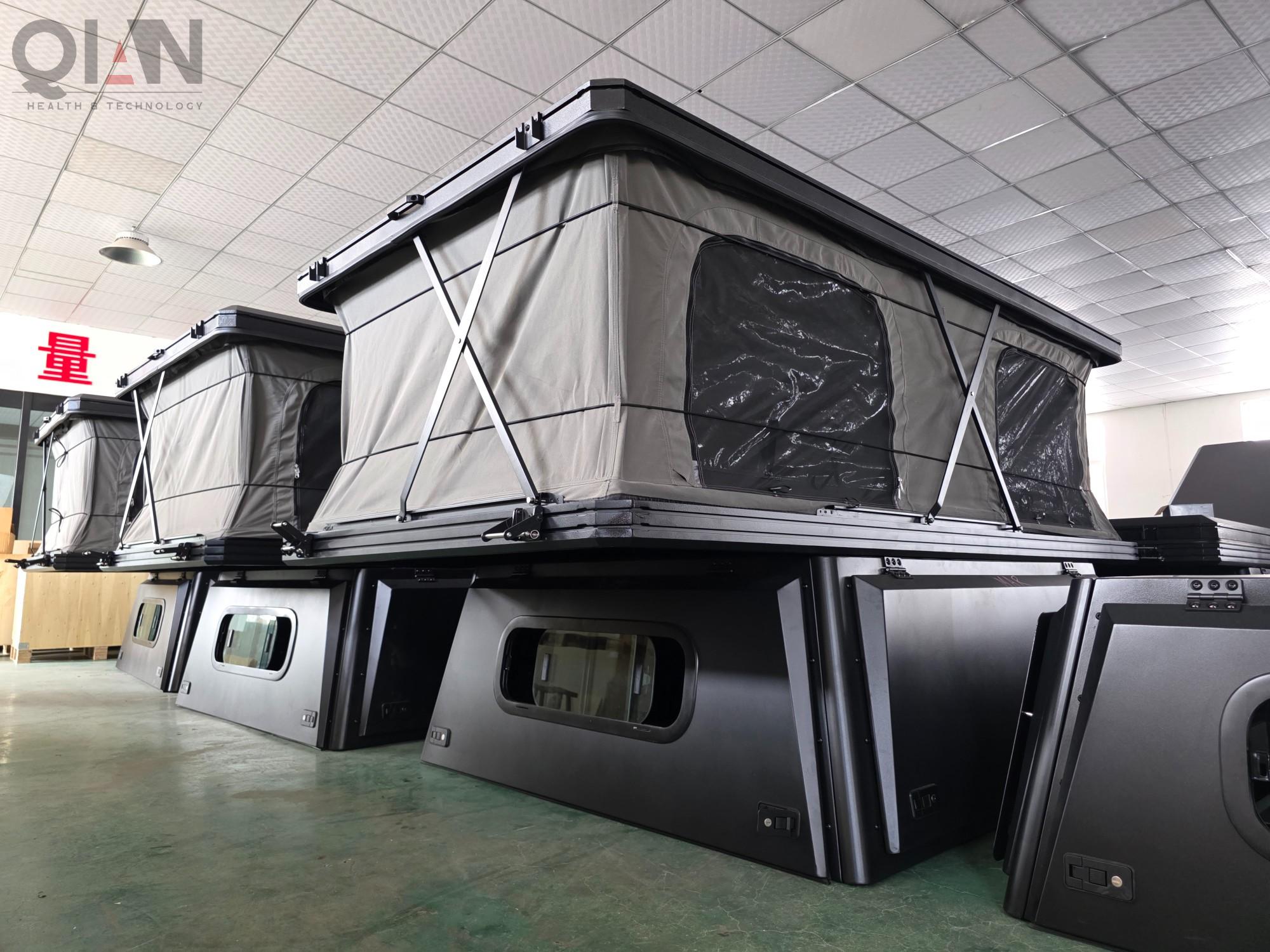

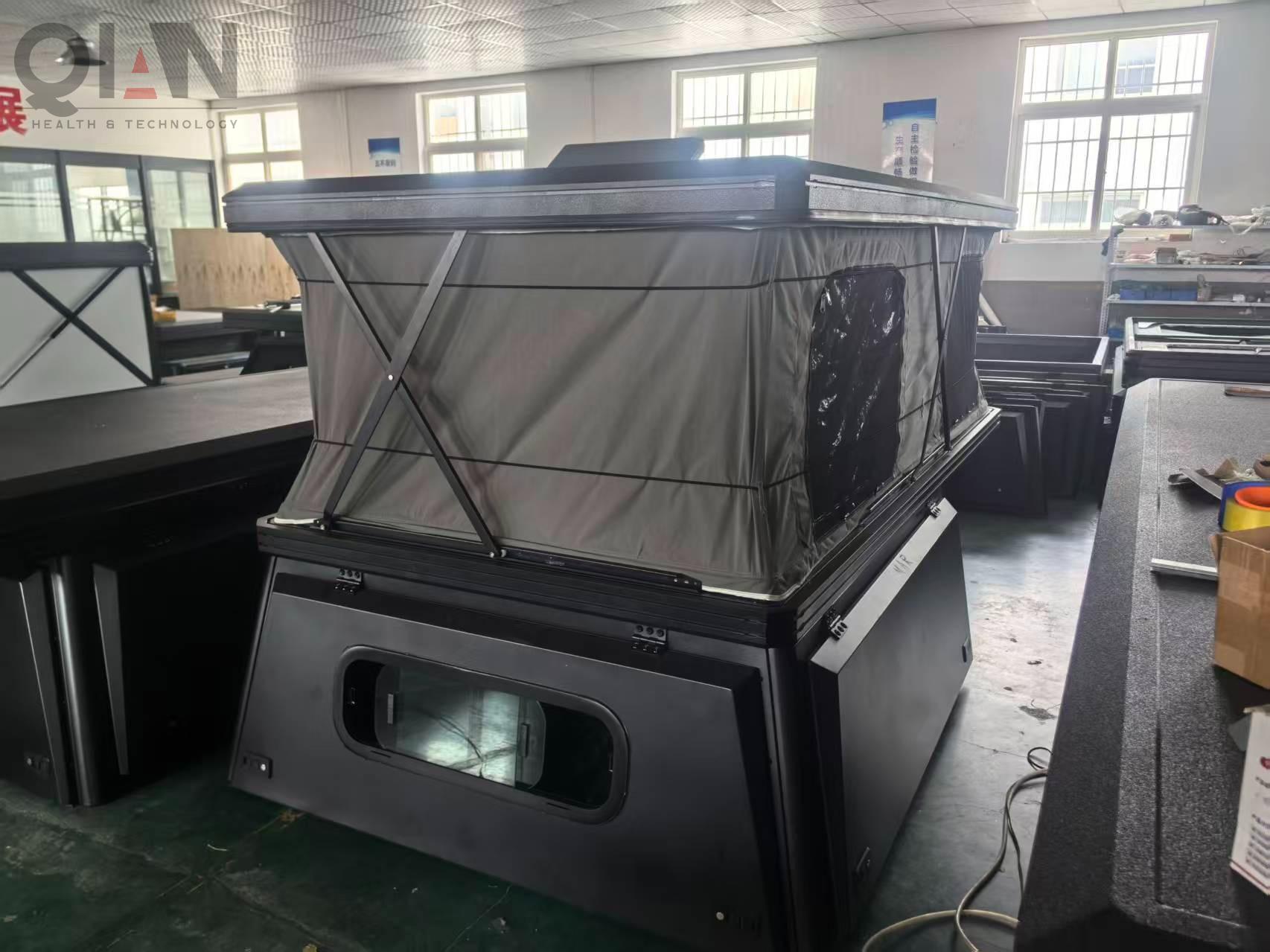

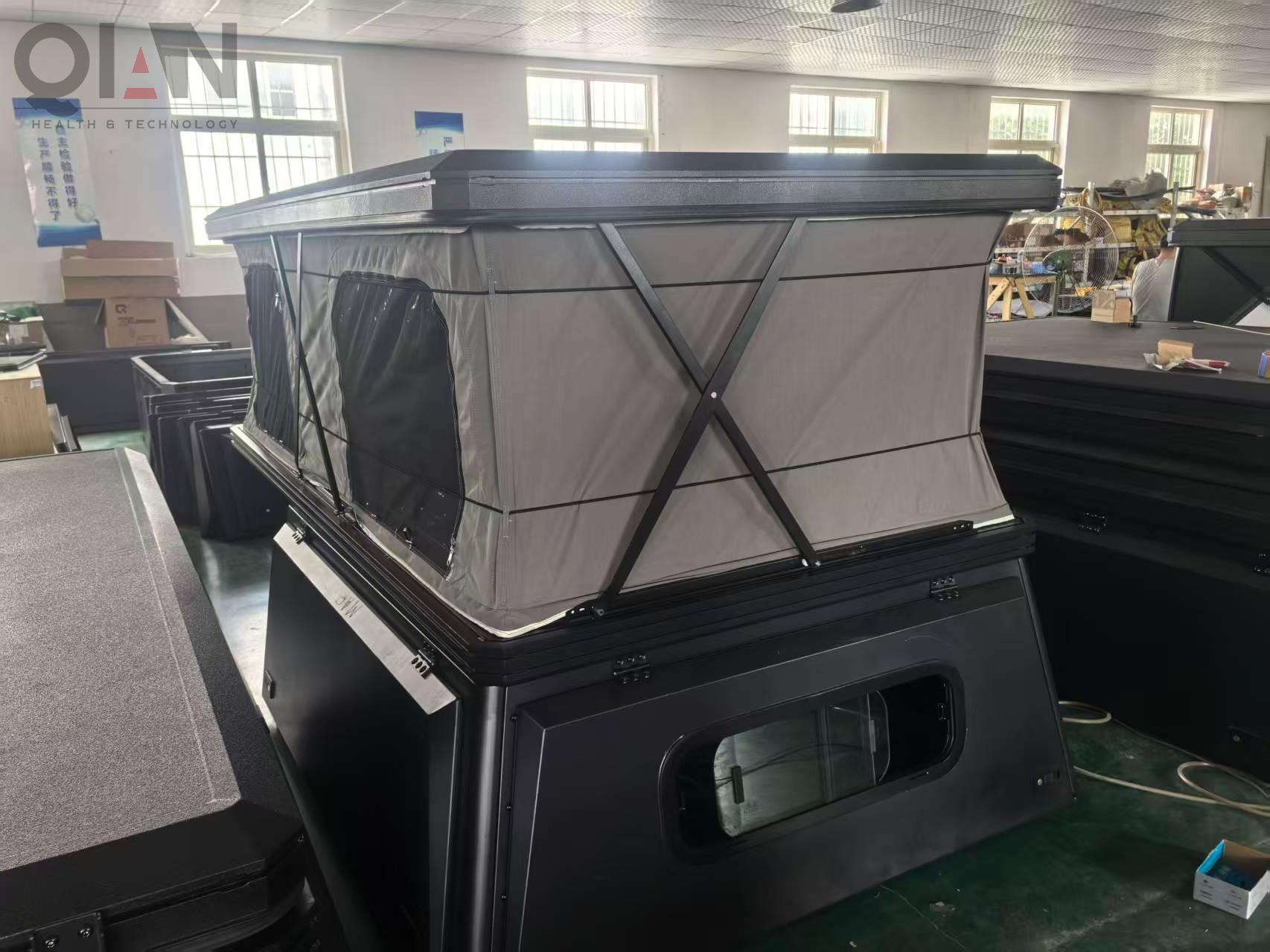

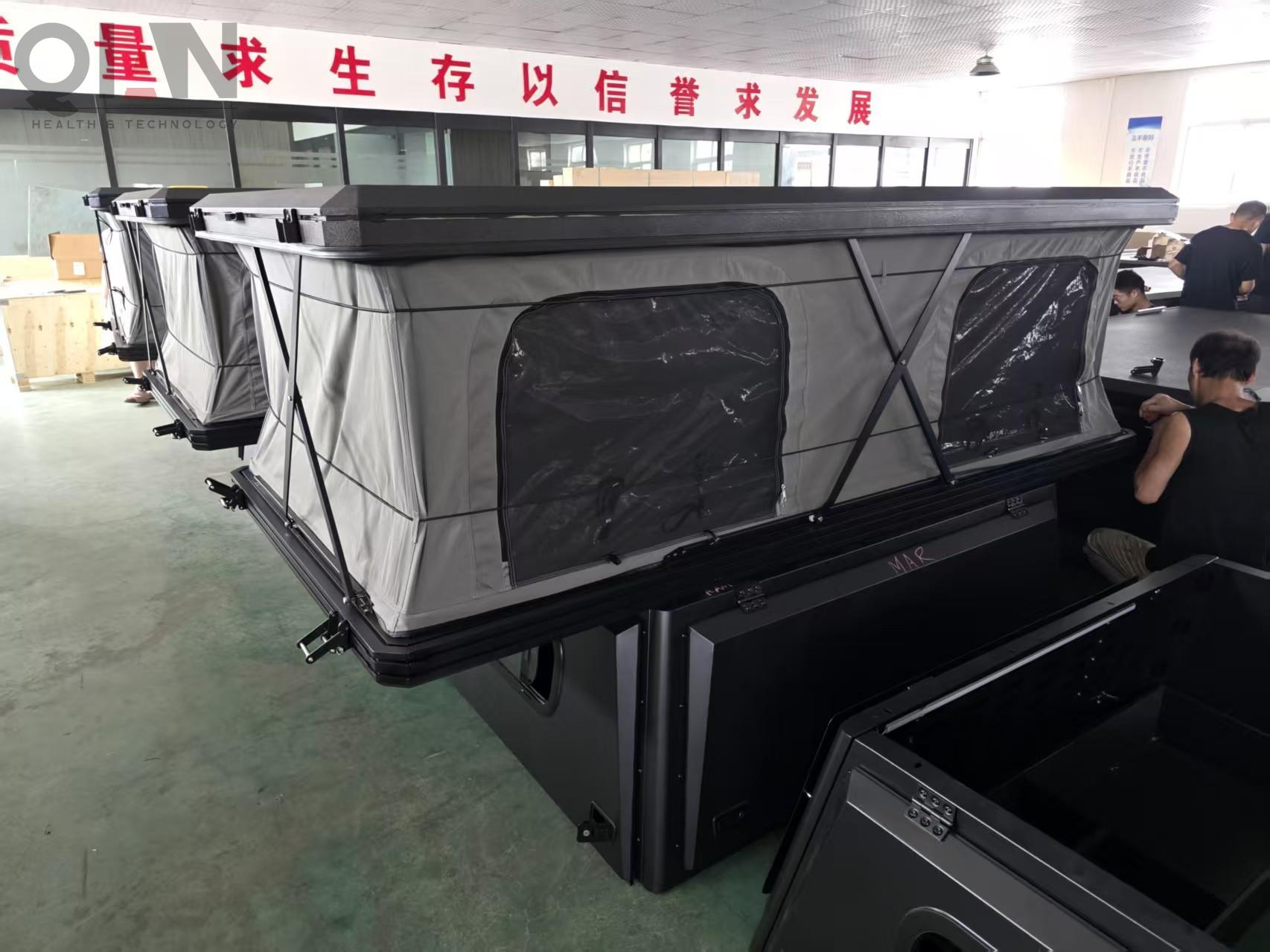

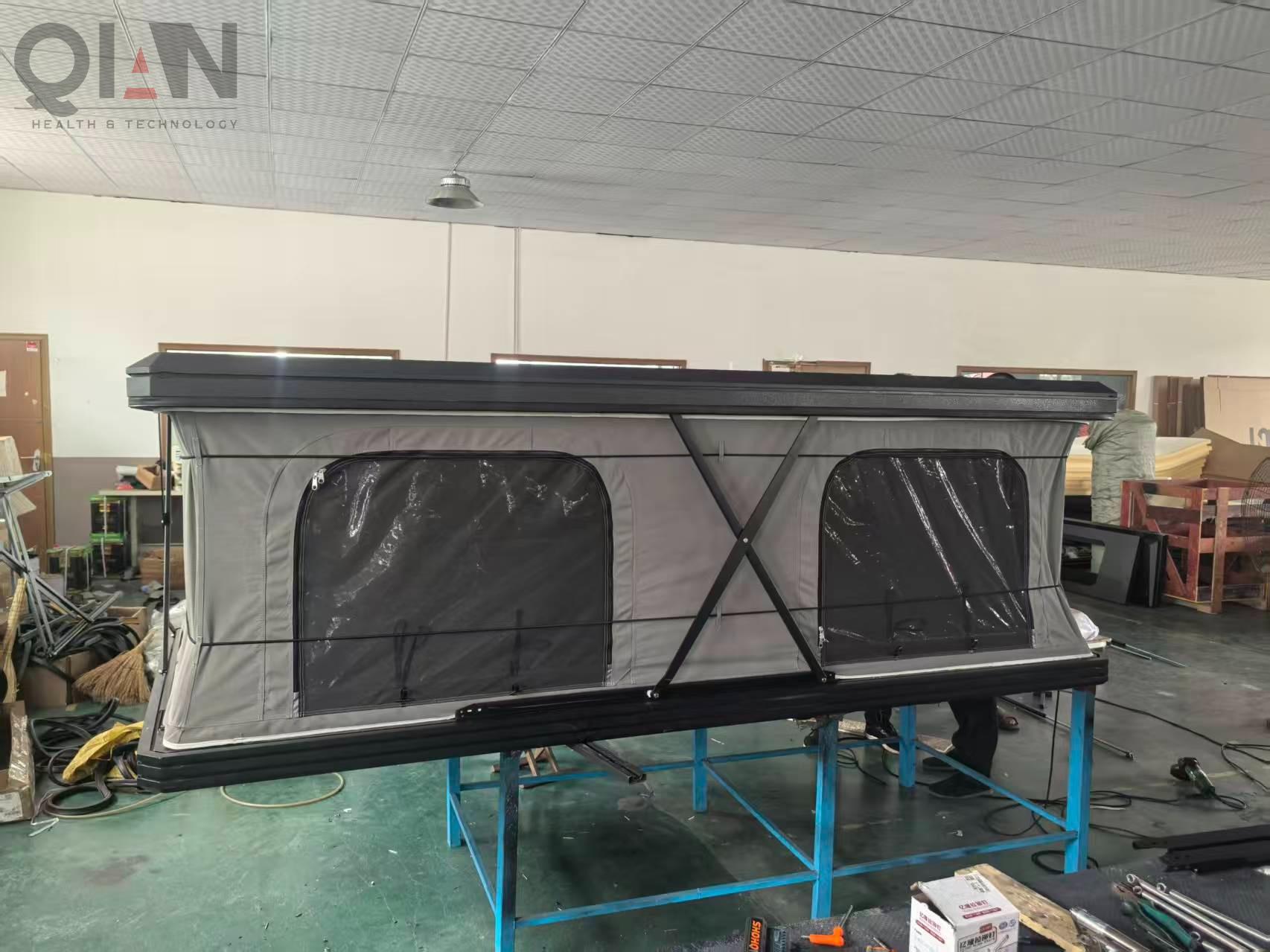

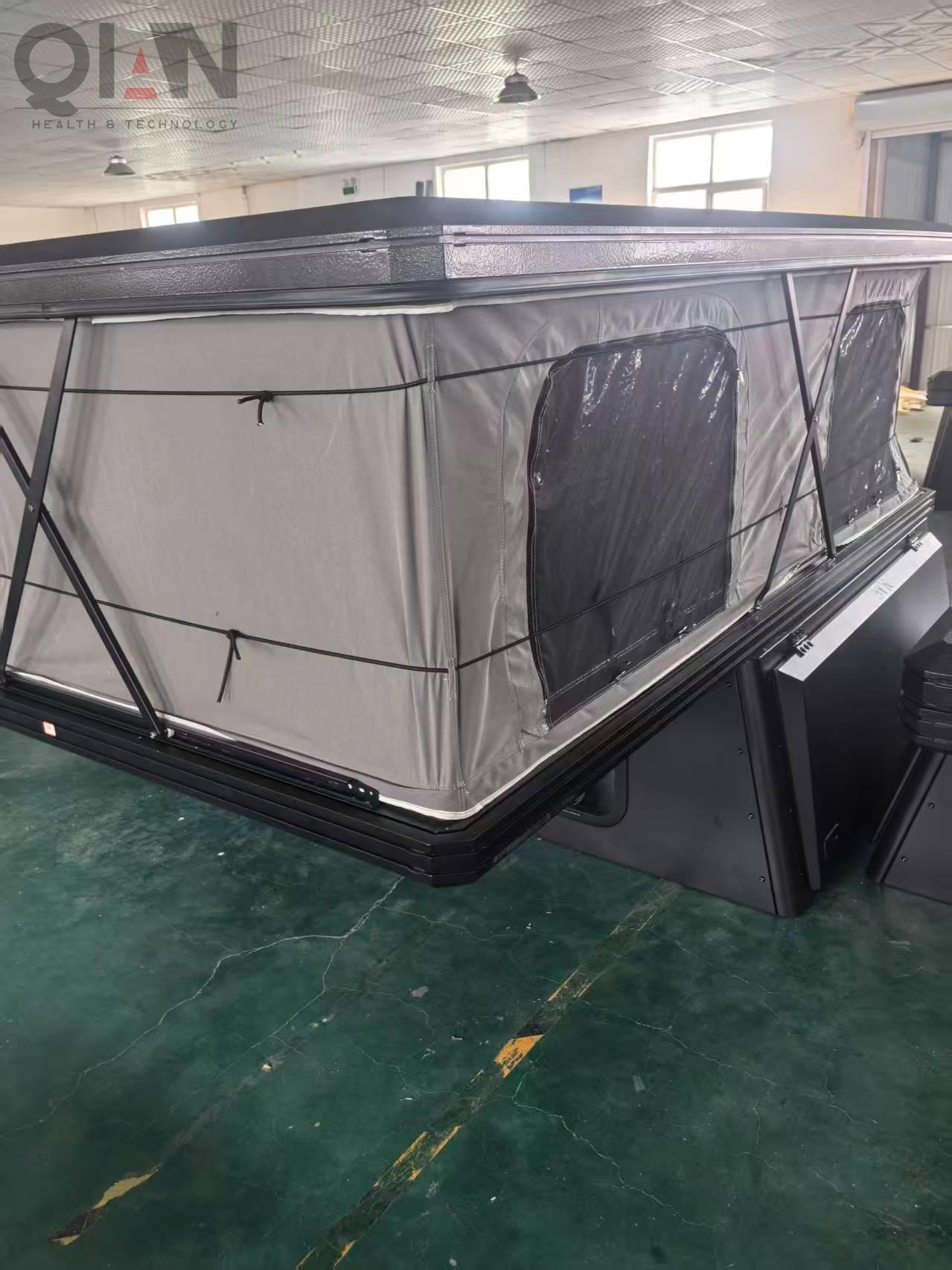

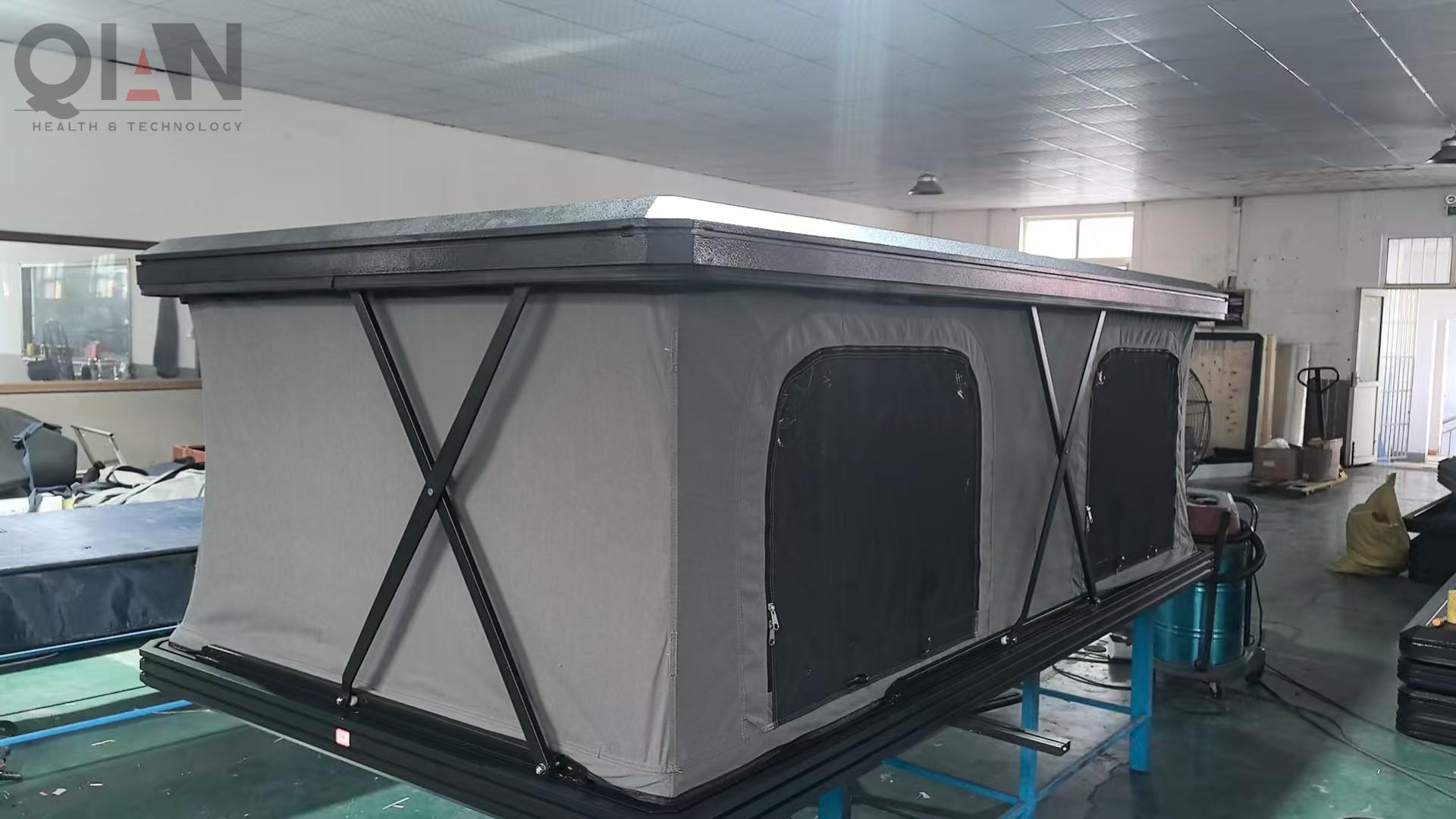

POP UP

– Total sleeping surface(L*W*H): 2200*1420mm

– 1” aluminum composite panel tent floors with a weight rating of 215KG

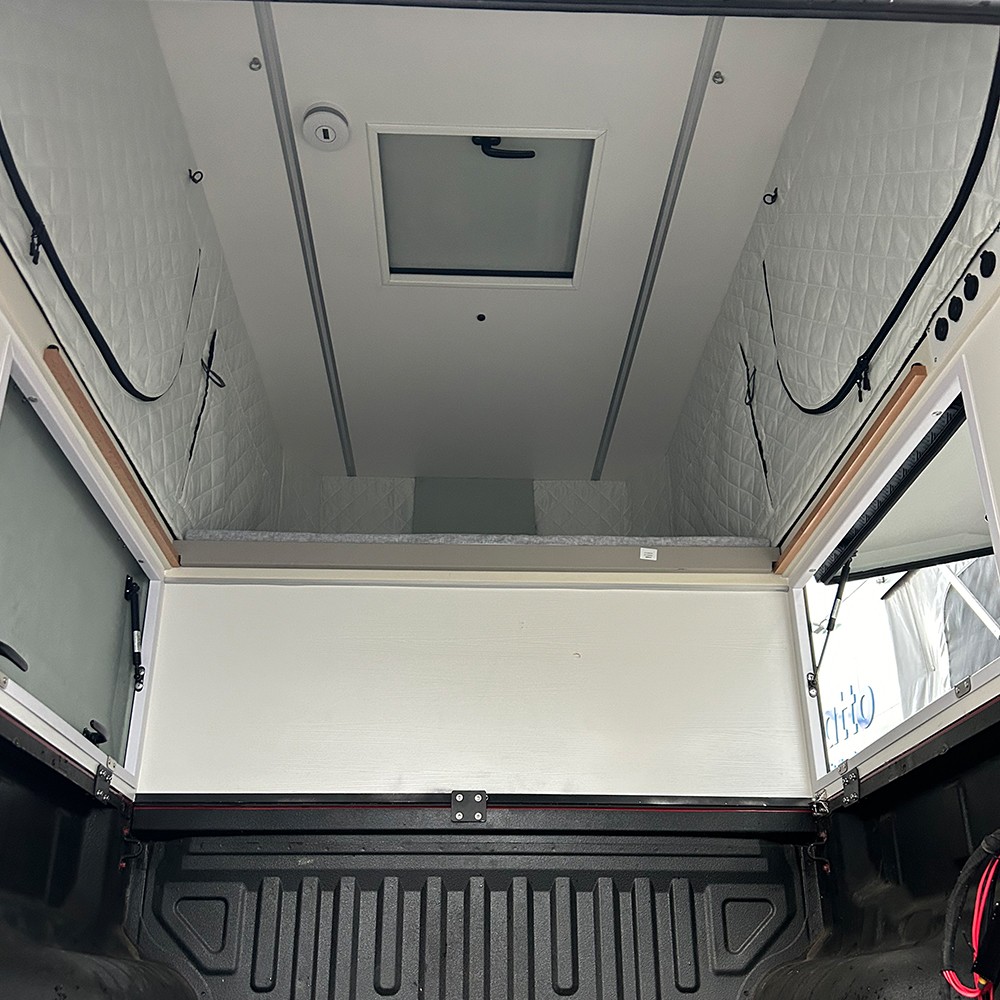

– Sleeping platforms slide to create living quarters underneath that is tall enough to stand up in

– 2 ″ high density foam mattress pads included– Washable mattress covers.

– Tent window 3-layer structure (transparent layer, Mosquito proof layer, tearresistant and waterproof layer)

– Allow adding winter lining as an option

– 4 sets of 304 stainless steel X bracket

– 4 sets of 304 stainless steel hydraulic rods (Hidden design)

– LED lighting(with USB interface) and storage bag at the top

– Opening and closing the pop up takes less than a minute

– Quality weatherstripping throughout at all the seams to keep out water and dust

– Total Weight: 200KG.
